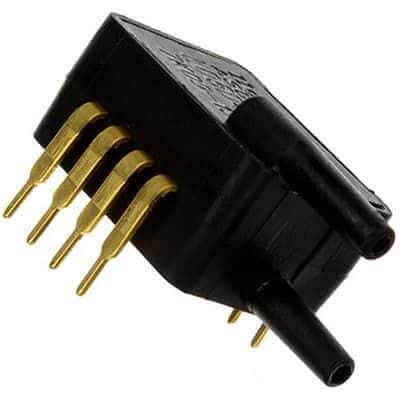

The ASDXL10D44D pressure sensor from Honeywell offers 2% accuracy and operates within a temperature range of -20°C to 105°C. It is designed for use in applications with a maximum supply voltage of 5.25V and a nominal supply current of 6mA. The sensor is packaged in a DIP case and is suitable for through-hole mounting. It is also RoHS compliant and lead-free.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Honeywell ASDXL10D44D datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Honeywell ASDXL10D44D technical specifications.
| Accuracy | 2% |
| Package/Case | DIP |
| Lead Free | Lead Free |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -20°C |
| Max Pressure | 3PSI |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Mount | Through Hole |
| Nominal Supply Current | 6mA |
| Operating Pressure | 0.36PSI |
| Operating Supply Voltage | 5V |
| Output Type | Analog Voltage, Digital, Voltage, Analog |
| Output Voltage | 4.5V |
| Package Quantity | 1 |
| Port Style | Barbless |
| Pressure Type | Compound |
| Primary Type | PRESSURE SENSOR |
| RoHS Compliant | Yes |
| Series | ASDXL |
| Termination | PC Pin |
| DC Rated Voltage | 5.25V |
| RoHS | Compliant |
