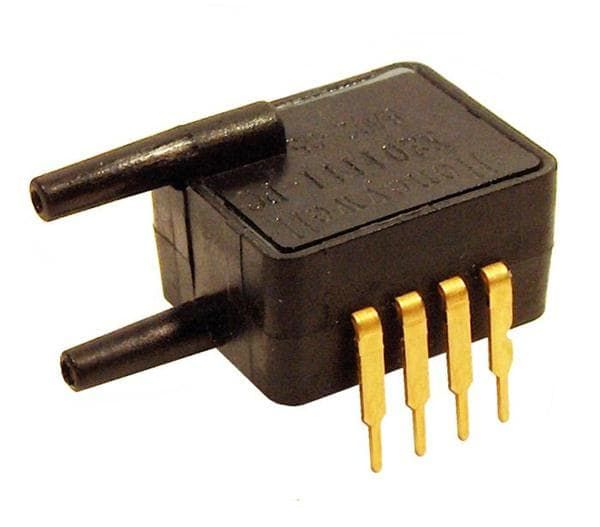

The ASDXRRX005ND2A5 is a differential pressure sensor from Honeywell with an operating temperature range of -20°C to 105°C. It features a radial package with through hole mounting and is compliant with RoHS regulations. The sensor has a response time of 0.46ms and operates at a supply voltage of 5V with a maximum supply current of 5mA. It is designed for use in general applications and is not SVHC compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Honeywell ASDXRRX005ND2A5 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Honeywell ASDXRRX005ND2A5 technical specifications.
| Accuracy | 2% |
| Package/Case | Radial |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -20°C |
| Max Pressure | 0.36PSI |
| Max Supply Current | 5mA |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Mount | Through Hole |
| Operating Pressure | 0.18PSI |
| Operating Supply Voltage | 5V |
| Output Type | I2C, Digital |
| Overall Depth | 14.02mm |
| Port Style | Barbless |
| Pressure Type | Differential |
| Reach SVHC Compliant | No |
| Response Time | 0.46ms |
| RoHS Compliant | Yes |
| Series | ASDX |
| Supply Current | 3.5mA |
| Termination | PC Pin |
| Voltage Rating | 5V |
| DC Rated Voltage | 5V |
| RoHS | Compliant |
