Mass flow sensor for dry gases, featuring a 0.35% accuracy and a flow range of -200 SCCM to 200 SCCM. Operates at pressures up to 25 PSI with a supply voltage range of 8V to 15V DC. Constructed with a silicon body, this through-hole mount sensor offers a 3ms response time and a maximum output voltage of 30mV. It operates within a temperature range of -25°C to 85°C and has a power consumption of 50mW.
MountingThrough Hole
Power50mW
Quick Jump:
Technical Specifications
Honeywell AWM2100V technical specifications.
General
| Accuracy | 0.35% |
| Body Material | SILICON |
| Height | 31.5mm |
| Lead Free | Lead Free |
| Length | 54.4mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Max Output Voltage | 30mV |
| Max Pressure | 25PSI |
| Max Supply Voltage (DC) | 15V |
| Min Supply Voltage (DC) | 8V |
| Max Supply Voltage | 15V |
| Min Supply Voltage | 8V |
| Max Voltage Rating (DC) | 15V |
| Mount | Through Hole |
| Operating Supply Voltage | 10V |
| Output Voltage | 30mV |
| Packaging | Rail/Tube |
| Power Consumption | 50mW |
| Reach SVHC Compliant | No |
| Response Time | 3ms |
| Series | AWM2000 |
| Termination | PCB |
| Weight | 10.8g |
| Width | 15.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Honeywell AWM2100V Datasheet
Download the complete datasheet for Honeywell AWM2100V to view detailed technical specifications.
No datasheet is available for this part.

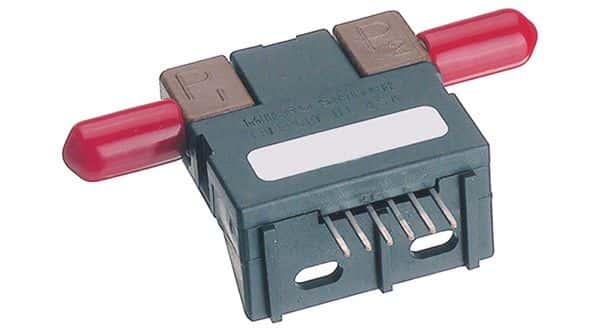

Product Images
