Mass flow sensor for dry gas applications, featuring 1% accuracy and a SILICON body. Operates within a -25°C to 85°C temperature range, with a maximum output voltage of 3.4V and an operating supply voltage of 10V. This 3-pin sensor offers a rapid 3ms response time and consumes 60mW of power. Termination is via wire/connector, with a weight of 10.8g.
Power60mW
Quick Jump:
Technical Specifications
Honeywell AWM3150V technical specifications.
General
| Accuracy | 1% |
| Body Material | SILICON |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Max Output Voltage | 3.4V |
| Operating Supply Voltage | 10V |
| Output Voltage | 3.4V |
| Packaging | Bulk |
| Power Consumption | 60mW |
| Response Time | 3ms |
| Series | AWM3000 |
| Termination | WIRE/CONNECTOR |
| Weight | 10.8g |
Compliance
| RoHS | Compliant |
Datasheet
Honeywell AWM3150V Datasheet
Download the complete datasheet for Honeywell AWM3150V to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

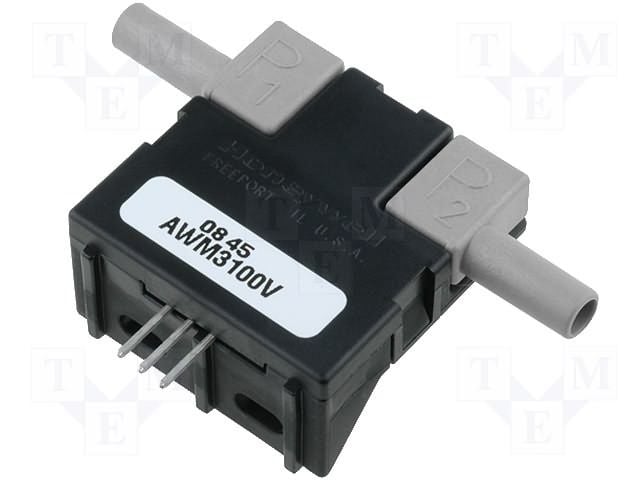

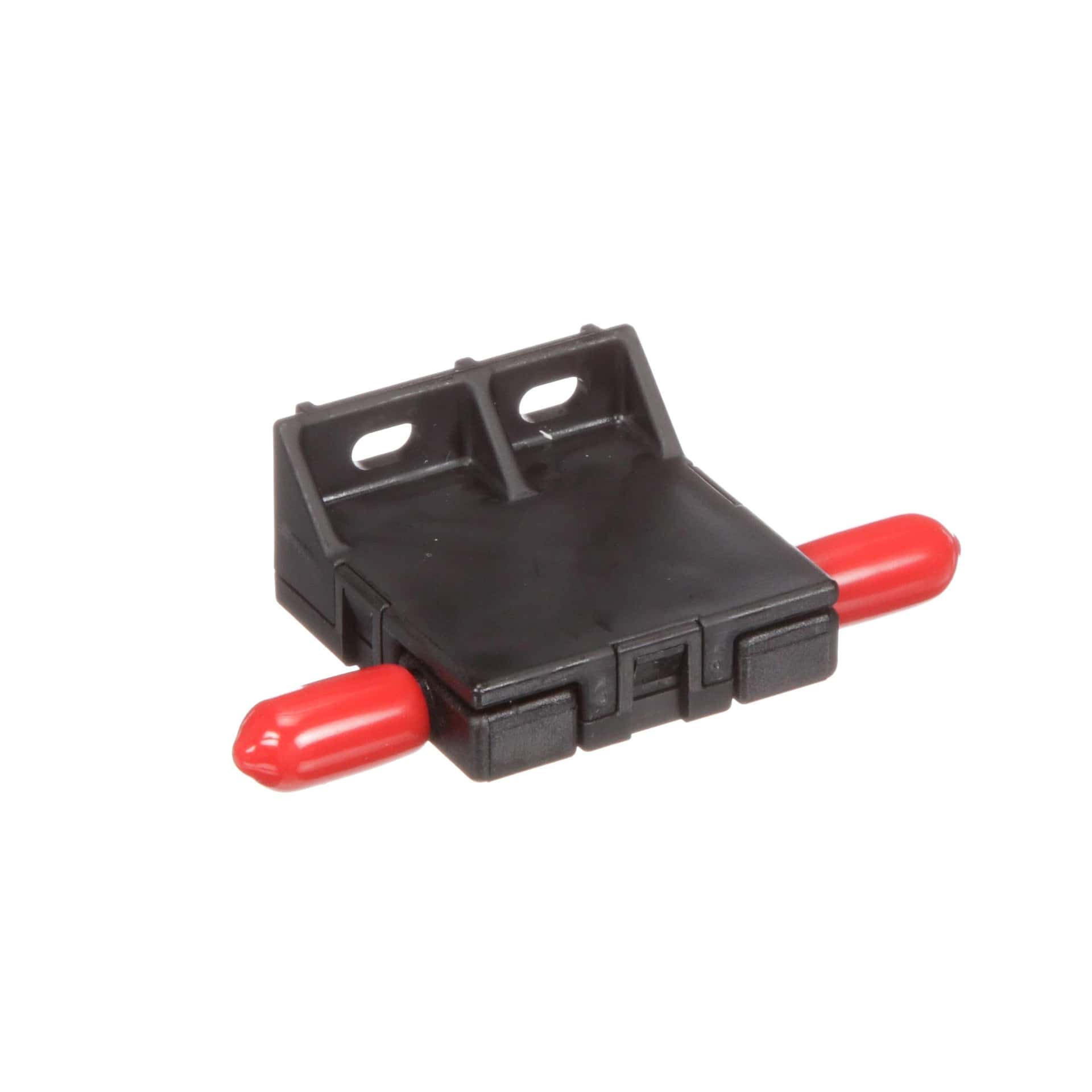

Product Images
