Mass flow sensor for dry gas applications, featuring a 1000 SCCM flow range and a maximum operating pressure of 150 PSI. This silicon-bodied sensor offers 0.5% accuracy and a rapid 3ms response time. Operating within a temperature range of -25°C to 85°C, it requires a supply voltage between 8V and 15V DC, with a typical 10V operating voltage and 5V output. Mounting options include through-hole, PCB, and screw, with wire/connector termination.
MountingThrough Hole, PCB, Screw
Power60mW
Quick Jump:
Technical Specifications
Honeywell AWM43300V technical specifications.
General
Accuracy
0.5%
Body Material
SILICON
Height
33.6mm
Lead Free
Lead Free
Length
30.2mm
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Output Voltage
5V
Max Pressure
150PSI
Max Supply Voltage (DC)
15V
Min Supply Voltage (DC)
8V
Max Supply Voltage
15V
Min Supply Voltage
8V
Mount
Through Hole, PCB, Screw
Operating Supply Voltage
10V
Output Voltage
5V
Package Quantity
10
Packaging
Rail/Tube
Power Consumption
60mW
Reach SVHC Compliant
No
Response Time
3ms
Series
AWM40000
Termination
WIRE/CONNECTOR
Weight
14g
Width
15.7mm
Compliance
RoHS
Compliant
Datasheet
Honeywell AWM43300V Datasheet
Download the complete datasheet for Honeywell AWM43300V to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

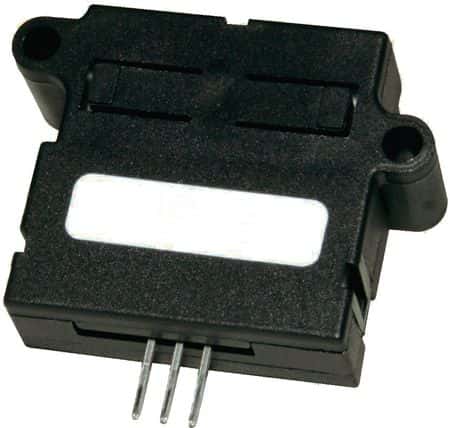

Product Images
