Mass air flow sensor with SILICON body material and 1/4 NPT threaded connection. Features a 3-pin connector termination and screw mount for two ports. Operates with a supply voltage range of 8V to 15V DC, delivering a 5V output. Maximum operating temperature is 70°C, minimum is -20°C, with a maximum pressure rating of 50 PSI. Response time is 60ms.
MountingScrew
Power100mW
Quick Jump:
Technical Specifications
Honeywell AWM5101VN technical specifications.
General
Body Material
SILICON
Connection Type
1/4 NPT
Lead Free
Lead Free
Max Operating Temperature
70°C
Min Operating Temperature
-20°C
Max Output Voltage
5V
Max Pressure
50PSI
Max Supply Voltage (DC)
15V
Min Supply Voltage (DC)
8V
Max Supply Voltage
15V
Min Supply Voltage
8V
Mount
Screw
Number of Ports
2
Operating Supply Voltage
10V
Output Voltage
5V
Package Quantity
5
Packaging
Bulk
Port Style
Threaded
Power Consumption
100mW
Reach SVHC Compliant
No
Response Time
60ms
RoHS Compliant
Yes
Series
AWM5000
Termination
Connector
Weight
60g
Width
32mm
Compliance
RoHS
Compliant
Datasheet
Honeywell AWM5101VN Datasheet
Download the complete datasheet for Honeywell AWM5101VN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

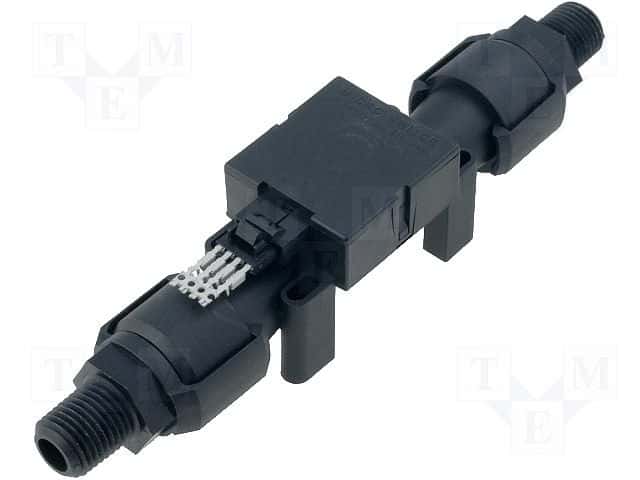

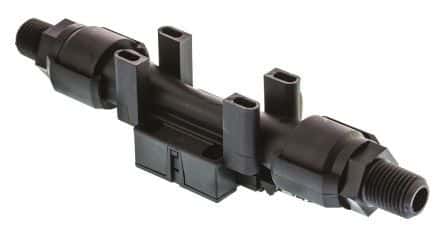

Product Images
