Mass air flow sensor with 0.5% accuracy, featuring a SILICON body and 1/4 NPT threaded port for panel mounting. Operates within a temperature range of -20°C to 70°C and supports a pressure up to 50 PSI. Provides a 5V output voltage with a 60ms response time, powered by a 8V to 15V DC supply. This 4-pin sensor is designed for air and liquid applications.
MountingPanel
Power100mW
Quick Jump:
Technical Specifications
Honeywell AWM5102VN technical specifications.
General
Accuracy
0.5%
Body Material
SILICON
Connection Type
1/4 NPT
Height
35.6mm
Length
163mm
Max Operating Temperature
70°C
Min Operating Temperature
-20°C
Max Output Voltage
5V
Max Pressure
50PSI
Max Supply Voltage (DC)
15V
Min Supply Voltage (DC)
8V
Max Supply Voltage
15V
Min Supply Voltage
8V
Mount
Panel
Operating Supply Voltage
10V
Output Voltage
5V
Packaging
Bulk
Port Style
Threaded
Power Consumption
100mW
Reach SVHC Compliant
No
Response Time
60ms
Series
AWM5000
Termination
Connector
Weight
60g
Width
32.3mm
Compliance
RoHS
Compliant
Datasheet
Honeywell AWM5102VN Datasheet
Download the complete datasheet for Honeywell AWM5102VN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

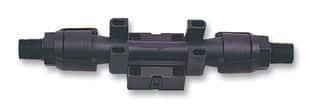

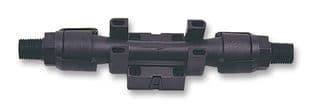

Product Images
