SPDT momentary snap acting/limit switch with a straight lever actuator. Features a 20A contact current rating, silver contacts, and a 125VDC/125VAC voltage rating. Panel mountable with screw terminals, this plastic switch operates within a -55°C to 85°C temperature range and boasts a mechanical life of 20,000,000 cycles.
Current Rating20A
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Honeywell BA-2RV-P4 technical specifications.
General
Actuator Length
635mm
Actuator Type
STRAIGHT LEVER
Contact Current Rating
20A
Contact Material
Silver
Current Rating
20A
Depth
17.45mm
Differential Travel
28mm
Length
76.78mm
Material
Plastic
Max Current Rating
20A
Max Operating Temperature
85°C
Max Voltage Rating (AC)
480V
Max Voltage Rating (DC)
250V
Mechanical Life
20000000Cycles
Min Operating Temperature
-55°C
Mount
Chassis Mount, Screw
Operating Position
0.03inch
Orientation
Straight
Overtravel
196mm
Packaging
Bulk
Pretravel
160mm
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Sealable
No (Without)
Series
BA
Switch Function
On-Mom
Termination
Screw
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Weight
286g
Compliance
RoHS
Compliant
Datasheet
Honeywell BA-2RV-P4 Datasheet
Download the complete datasheet for Honeywell BA-2RV-P4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

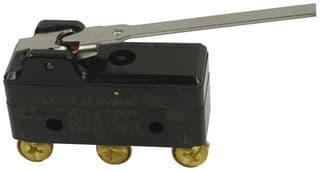

Product Images
