Honeywell
BAF1-3RNX1
Snap Acting/Limit Switch, SPDT, Momentary, 0.5A, 125VDC, 7.95mm, Screw Terminal, Steel Plunger Actuator, Panel Mount-threaded,
Current Rating20A
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Honeywell BAF1-3RNX1 technical specifications.
General
Actuator Type
PLUNGER
Contact Type
Snap Action
Current Rating
20A
Depth
33mm
Length
101.6mm
Max Operating Temperature
71°C
Min Operating Temperature
-32°C
Mount
Chassis Mount, Screw
Operating Force
779N
Operating Position
2.094inch
Overtravel
556mm
Package Quantity
1
Packaging
Bulk
Pretravel
239mm
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
BAF1
Switch Function
On-On
Termination
Conduit
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Width
54.8mm
Compliance
RoHS
Compliant
Datasheet
Honeywell BAF1-3RNX1 Datasheet
Download the complete datasheet for Honeywell BAF1-3RNX1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

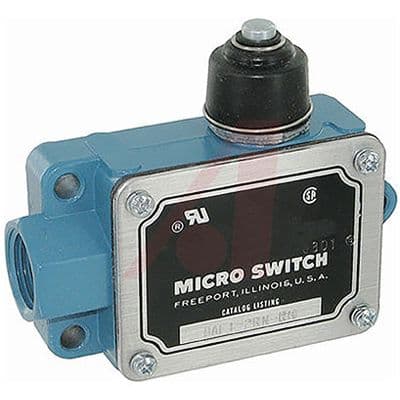

Product Images
