SPDT snap action switch with pin plunger actuator, rated for 15A at 125VAC and 125VDC. Features a 3.61N operating force and 0.015-inch operating position. Offers 1,000,000 electrical cycles and 20,000,000 mechanical cycles. RoHS compliant with UL and CSA approvals, this chassis-mount switch utilizes screw terminals and operates within a temperature range of -55°C to 125°C.
Package125
Current Rating15A
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Honeywell BZ-2R-A2 technical specifications.
General
Actuator Type
PIN PLUNGER
Approvals
UL, CSA
Package/Case
125
Contact Current Rating
15A
Current Rating
15A
Depth
17.5mm
Differential Travel
0.002inch
Electrical Life
100000Cycles
Lead Free
Lead Free
Length
49.3mm
Material
Plastic
Max Current Rating
15A
Max Operating Temperature
125°C
Mechanical Life
20000000Cycles
Min Operating Temperature
-55°C
Mount
Chassis Mount, Screw
Operating Force
361N
Operating Position
0.015inch
Orientation
Straight
Package Quantity
5
Packaging
Bulk
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Sealable
No (Without)
Series
BZ
Switch Function
On-Mom
Termination
Screw
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Weight
286g
Compliance
RoHS
Compliant
Datasheet
Honeywell BZ-2R-A2 Datasheet
Download the complete datasheet for Honeywell BZ-2R-A2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

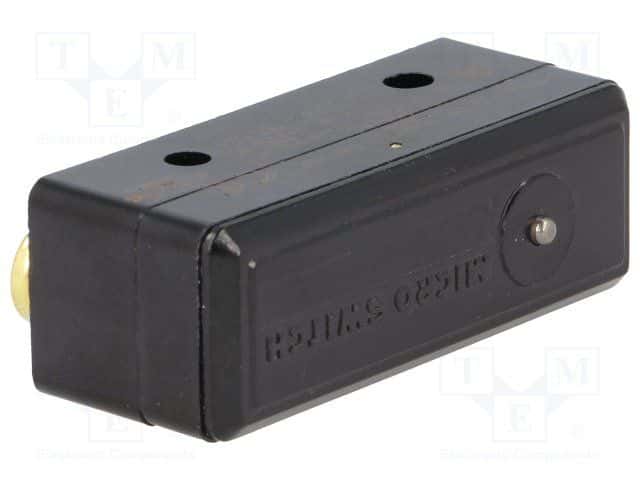

Product Images
