SPDT snap-action switch featuring a pin plunger actuator and screw termination. Rated for 16A max current and 480VAC/250VDC, with a 15A contact current rating using silver contacts. Offers a mechanical life of 20,000,000 cycles and an electrical life of 50,000 cycles. Chassis mountable via screw, with a straight orientation and a weight of 286g. Operating force is 361N, with a differential travel of 0.002 inches.
Current Rating15A
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Honeywell BZ-2R-P4 technical specifications.
General
Actuator Type
PIN PLUNGER
Contact Current Rating
15A
Contact Material
Silver
Current Rating
15A
Depth
17.45mm
Differential Travel
0.002inch
Electrical Life
50000Cycles
Length
50.55mm
Material
Plastic
Max Current Rating
16A
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Max Voltage Rating (AC)
480V
Max Voltage Rating (DC)
250V
Mechanical Life
20000000Cycles
Mount
Chassis Mount, Screw
Operating Force
361N
Operating Position
0.015inch
Orientation
Straight
Package Quantity
5
Packaging
Bulk
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Sealable
No (Without)
Series
BZ
Switch Function
On-Mom
Termination
Screw
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Weight
286g
Compliance
RoHS
Compliant
Datasheet
Honeywell BZ-2R-P4 Datasheet
Download the complete datasheet for Honeywell BZ-2R-P4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

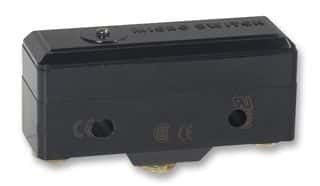

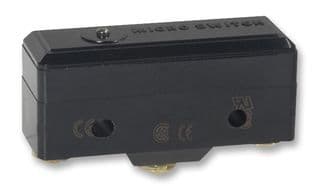

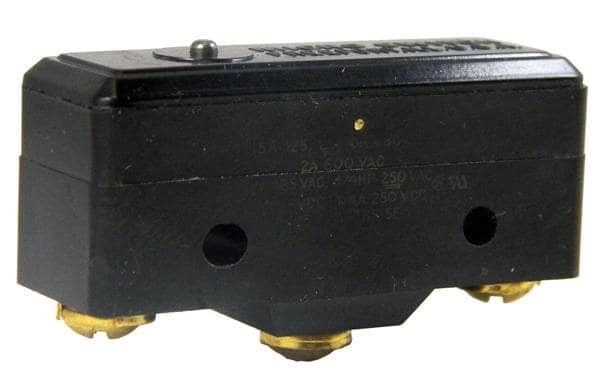

Product Images
