SPDT snap-action switch featuring a high overtravel plunger actuator made of steel. Rated for 15A at 125VAC/125VDC, with silver contacts and a 125V AC voltage rating. Offers a 3.61N operating force, 0.02-inch operating position, and 0.002-inch differential travel. This RoHS compliant component has a mechanical life of 20,000,000 cycles and an electrical life of 100,000 cycles, with a temperature range of -55°C to 85°C. Mounting is via screw terminals for chassis applications.
Package125
Current Rating15A
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Honeywell BZ-2RQ-A2 technical specifications.
General
Actuator Material
Steel
Actuator Type
PLUNGER
Approvals
UL, CSA
Package/Case
125
Contact Current Rating
15A
Contact Material
Silver
Current Rating
15A
Depth
17.5mm
Differential Travel
0.002inch
Electrical Life
100000Cycles
Length
49.3mm
Material
Plastic
Max Current Rating
15A
Max Operating Temperature
85°C
Mechanical Life
20000000Cycles
Min Operating Temperature
-55°C
Mount
Chassis Mount, Screw
Operating Force
361N
Operating Position
0.02inch
Orientation
Straight
Overtravel
556mm
Package Quantity
5
Packaging
Bulk
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Sealable
No (Without)
Series
BZ
Switch Function
On-Mom
Termination
Screw
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Weight
39g
Compliance
RoHS
Compliant
Datasheet
Honeywell BZ-2RQ-A2 Datasheet
Download the complete datasheet for Honeywell BZ-2RQ-A2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

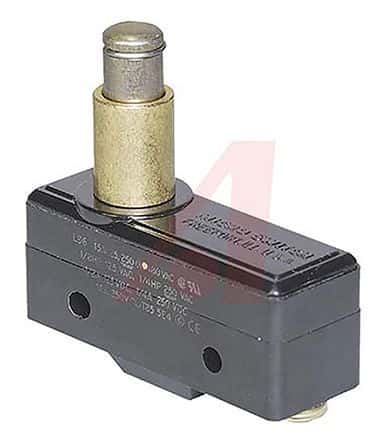

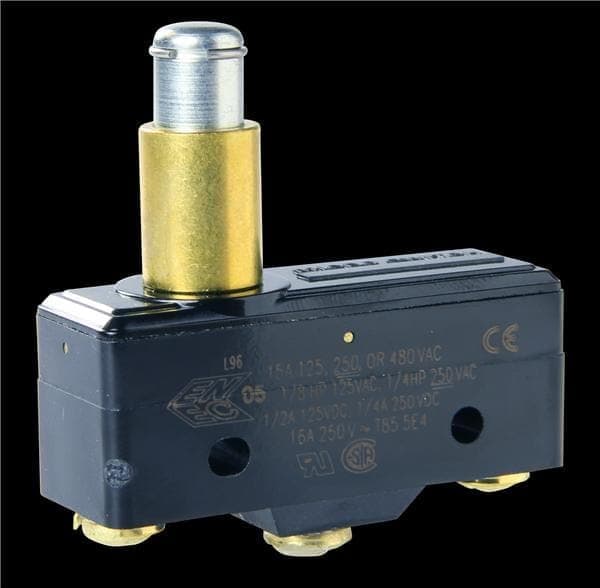

Product Images
