SPDT snap action switch featuring a high overtravel plunger, rated for 15A at 250VAC. This general-purpose switch offers a straight orientation, panel mount with wire lead termination, and a steel actuator with silver contacts. Operating force is 3.61N, with a differential travel of 0.002 inches and overtravel of 556mm. Designed for a wide temperature range from -55°C to 85°C, it boasts a mechanical life of 20,000,000 cycles and is RoHS compliant.
Current Rating15A
MountingPanel, Wire
Quick Jump:
Technical Specifications
Honeywell BZ-2RQ1016-W119 technical specifications.
General
| Actuator Material | Steel |
| Contact Material | Silver |
| Current Rating | 15A |
| Depth | 17.45mm |
| Differential Travel | 0.002inch |
| Length | 69.85mm |
| Material | Plastic |
| Max Current Rating | 15A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 250V |
| Mechanical Life | 20000000Cycles |
| Mount | Panel, Wire |
| Operating Force | 361N |
| Orientation | Straight |
| Overtravel | 556mm |
| Package Quantity | 5 |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | BZ |
| Switch Function | On-Mom |
| Termination | Connector |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 125V |
| Weight | 3401g |
Compliance
| RoHS | Compliant |
Datasheet
Honeywell BZ-2RQ1016-W119 Datasheet
Download the complete datasheet for Honeywell BZ-2RQ1016-W119 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

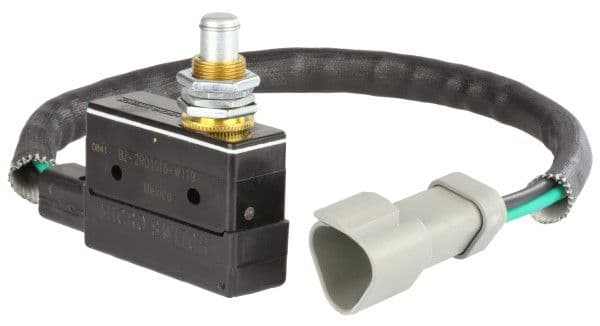

Product Images
