SPDT momentary snap acting switch with a hardened steel plunger actuator. Features a 15A contact current rating and 125VDC voltage rating, with a maximum AC voltage rating of 480V and DC voltage rating of 250V. Offers a mechanical life of 20,000,000 cycles and operates within a temperature range of -55°C to 121°C. Panel mountable with screw terminals, this RoHS compliant switch has a straight orientation and a 361N operating force.
Current Rating15A
MountingPanel, Screw
Quick Jump:
Technical Specifications
Honeywell BZ-2RQ124-A2 technical specifications.
General
Actuator Material
Steel
Actuator Type
PLUNGER
Contact Current Rating
15A
Contact Material
Silver
Current Rating
15A
Depth
17.45mm
Length
49.28mm
Material
Plastic
Max Current Rating
16A
Max Operating Temperature
121°C
Mechanical Life
20000000Cycles
Min Operating Temperature
-55°C
Max Voltage Rating (AC)
480V
Max Voltage Rating (DC)
250V
Mount
Panel, Screw
Operating Force
361N
Operating Position
2182mm
Orientation
Straight
Overtravel
556mm
Package Quantity
5
Packaging
Bulk
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Sealable
No (Without)
Series
BZ
Switch Function
On-Mom
Termination
Screw
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Weight
3401g
Compliance
RoHS
Compliant
Datasheet
Honeywell BZ-2RQ124-A2 Datasheet
Download the complete datasheet for Honeywell BZ-2RQ124-A2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

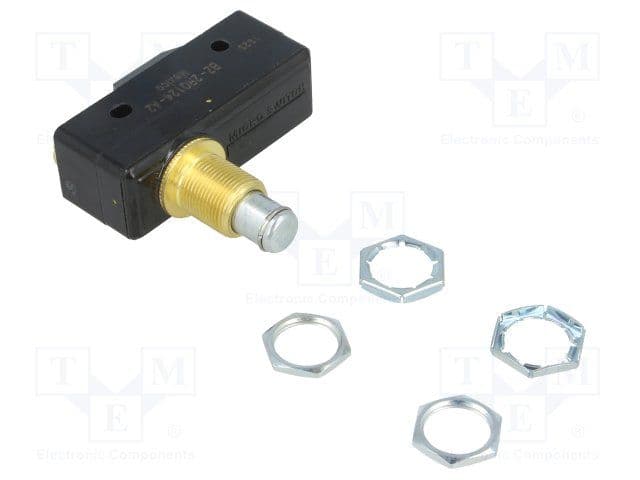

Product Images
