SPDT snap-action switch featuring a high overtravel plunger actuator. Rated for 16A at 600VAC and 250VDC, with a 186.42VA rating. Offers a mechanical life of 20,000,000 cycles and operates between -55°C and 85°C. Panel mountable with screw terminals, this switch has a steel plunger and silver contacts.
Current Rating15A
MountingPanel, Screw
Quick Jump:
Technical Specifications
Honeywell BZ-2RQ66 technical specifications.
General
Actuator Material
Steel
Actuator Type
PLUNGER
Contact Current Rating
15A
Contact Material
Silver
Current Rating
15A
Depth
17.45mm
Differential Travel
0.002inch
Length
49.28mm
Material
Plastic
Max Current Rating
16A
Max Operating Temperature
85°C
Mechanical Life
20000000Cycles
Min Operating Temperature
-55°C
Max Voltage Rating (AC)
600V
Max Voltage Rating (DC)
250V
Mount
Panel, Screw
Operating Force
361N
Operating Position
0.02inch
Orientation
Straight
Overtravel
556mm
Package Quantity
5
Packaging
Bulk
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Sealable
No (Without)
Series
BZ
Switch Function
On-Mom
Termination
Screw
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Weight
39g
Compliance
RoHS
Compliant
Datasheet
Honeywell BZ-2RQ66 Datasheet
Download the complete datasheet for Honeywell BZ-2RQ66 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

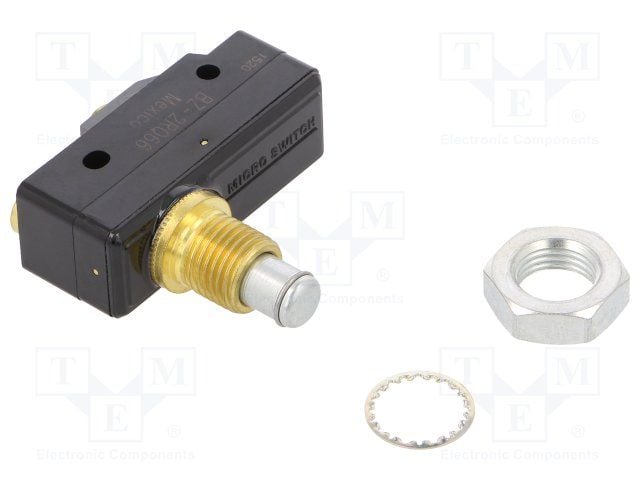

Product Images
