SPDT snap-action switch featuring a plunger actuator and silver contacts. Rated for 15A at 250VAC, with a mechanical life of 20 million cycles. Offers high overtravel of 358mm and a differential travel of 0.002 inches. Panel mountable with screw terminals, operating force of 3.61N, and a temperature range of -55°C to 85°C. RoHS compliant.
Current Rating15A
MountingPanel, Screw
Quick Jump:
Technical Specifications
Honeywell BZ-2RQ69 technical specifications.
General
| Actuator Type | PLUNGER |
| Contact Current Rating | 15A |
| Contact Material | Silver |
| Current Rating | 15A |
| Depth | 17.45mm |
| Differential Travel | 0.002inch |
| Length | 49.28mm |
| Material | Plastic |
| Max Current Rating | 15A |
| Max Operating Temperature | 85°C |
| Mechanical Life | 20000000Cycles |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Panel, Screw |
| Operating Force | 361N |
| Operating Position | 0.03inch |
| Orientation | Straight |
| Overtravel | 358mm |
| Package Quantity | 5 |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | BZ |
| Switch Function | On-Mom |
| Termination | Screw |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 125V |
| Weight | 39g |
Compliance
| RoHS | Compliant |
Datasheet
Honeywell BZ-2RQ69 Datasheet
Download the complete datasheet for Honeywell BZ-2RQ69 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

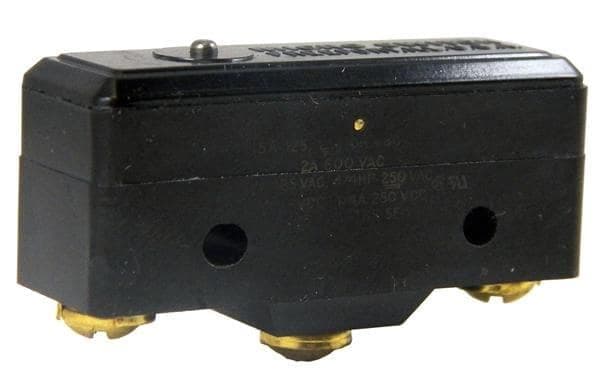

Product Images
