SPDT snap action switch with roller plunger actuator, rated for 16A at 600VAC and 250VDC. Features silver contacts, panel mount with screw termination, and a mechanical life of 20 million cycles. Operating force is 3.61N, with a differential travel of 0.002 inches. Constructed from plastic, this RoHS compliant switch operates within a temperature range of -55°C to 85°C.
Package600
Current Rating15A
MountingPanel, Screw
Quick Jump:
Technical Specifications
Honeywell BZ-2RQ784 technical specifications.
General
Actuator Type
PLUNGER
Package/Case
600
Contact Current Rating
15A
Contact Material
Silver
Current Rating
15A
Depth
17.45mm
Differential Travel
0.002inch
Length
49.28mm
Material
Plastic
Max Current Rating
16A
Max Operating Temperature
85°C
Mechanical Life
20000000Cycles
Min Operating Temperature
-55°C
Max Voltage Rating (AC)
600V
Max Voltage Rating (DC)
250V
Mount
Panel, Screw
Operating Force
361N
Operating Position
0.045inch
Orientation
Straight
Overtravel
356mm
Package Quantity
5
Packaging
Bulk
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Sealable
No (Without)
Series
BZ
Switch Function
On-Mom
Termination
Screw
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Weight
39g
Compliance
RoHS
Compliant
Datasheet
Honeywell BZ-2RQ784 Datasheet
Download the complete datasheet for Honeywell BZ-2RQ784 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

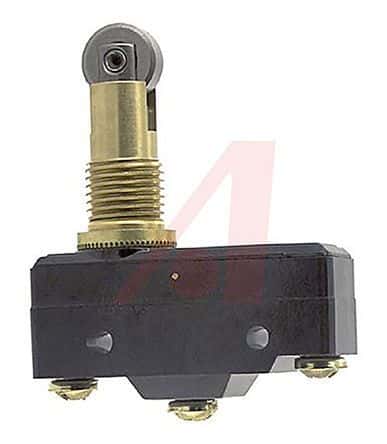

Product Images
