SPDT momentary snap acting switch with a 15A contact current rating and silver contacts. Features a 125VDC, 0.5A rating, 3.96mm termination, and screw terminals for panel or chassis mounting. Operates within a temperature range of -55°C to 85°C, offering a mechanical life of 20 million cycles. Includes a 48.22mm actuator and 39.6mm overtravel.
Current Rating15A
MountingChassis Mount, Panel, Screw
Quick Jump:
Technical Specifications
Honeywell BZ-2RW80196-A2 technical specifications.
General
Actuator Length
4822mm
Contact Current Rating
15A
Contact Material
Silver
Current Rating
15A
Depth
17.45mm
Length
59.54mm
Material
Plastic
Max Current Rating
16A
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Max Voltage Rating (AC)
480V
Max Voltage Rating (DC)
250V
Mechanical Life
20000000Cycles
Mount
Chassis Mount, Panel, Screw
Operating Position
0.03inch
Orientation
Straight
Overtravel
396mm
Package Quantity
5
Packaging
Bulk
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Sealable
No (Without)
Series
BZ
Switch Function
On-Mom
Termination
Screw
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Weight
3401g
Compliance
RoHS
Compliant
Datasheet
Honeywell BZ-2RW80196-A2 Datasheet
Download the complete datasheet for Honeywell BZ-2RW80196-A2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

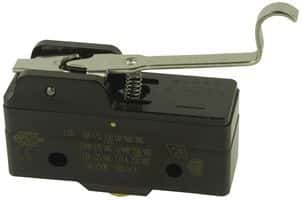

Product Images
