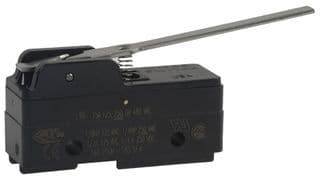

SPDT snap action switch featuring a straight lever actuator with a 635mm length. Rated for 5A at 480VAC and 250VDC, with silver contacts. This chassis-mount switch offers screw termination and a mechanical life of 20,000,000 cycles. Operating temperature range is -55°C to 85°C.
Current Rating5A
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Honeywell BZ-2RW80233-A2 technical specifications.
General
Actuator Length
635mm
Actuator Type
STRAIGHT LEVER
Contact Current Rating
5A
Contact Material
Silver
Current Rating
5A
Depth
17.45mm
Length
74.78mm
Material
Plastic
Max Current Rating
5A
Max Operating Temperature
85°C
Mechanical Life
20000000Cycles
Min Operating Temperature
-55°C
Max Voltage Rating (AC)
480V
Max Voltage Rating (DC)
250V
Mount
Chassis Mount, Screw
Operating Position
191mm
Orientation
Straight
Overtravel
556mm
Package Quantity
5
Packaging
Bulk
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Sealable
No (Without)
Series
BZ
Switch Function
On-Mom
Termination
Screw
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Weight
3401g
Compliance
RoHS
Compliant
Datasheet
Honeywell BZ-2RW80233-A2 Datasheet
Download the complete datasheet for Honeywell BZ-2RW80233-A2 to view detailed technical specifications.
