SPDT snap acting switch featuring a 15A current rating and 125VDC/125VAC voltage rating, with a maximum AC voltage rating of 600V. This general-purpose switch offers a 2.54mm overtravel and screw terminals for chassis or panel mounting. Constructed from plastic with silver contacts, it boasts a mechanical life of 20,000,000 cycles and operates within a temperature range of -55°C to 85°C.
Current Rating15A
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Honeywell BZ-2RW80288-A2 technical specifications.
General
Contact Material
Silver
Current Rating
15A
Depth
17.45mm
Length
49.28mm
Material
Plastic
Max Current Rating
16A
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Max Voltage Rating (AC)
600V
Max Voltage Rating (DC)
250V
Mechanical Life
20000000Cycles
Mount
Chassis Mount, Screw
Orientation
Straight
Overtravel
254mm
Packaging
Bulk
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Sealable
No (Without)
Series
BZ
Switch Function
On-Mom
Termination
Screw
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Weight
3401g
Compliance
RoHS
Compliant
Datasheet
Honeywell BZ-2RW80288-A2 Datasheet
Download the complete datasheet for Honeywell BZ-2RW80288-A2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

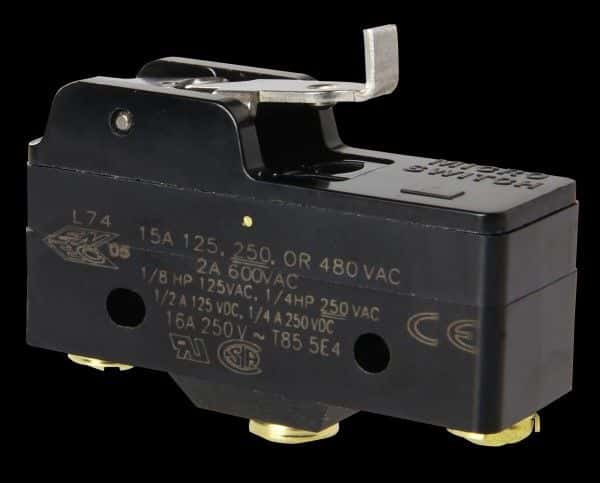

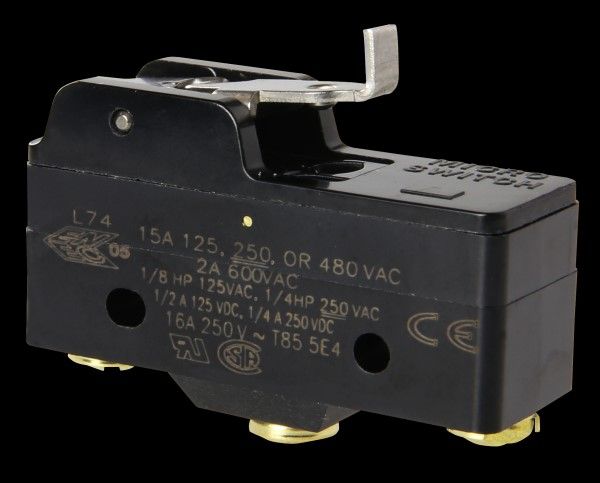

Product Images
