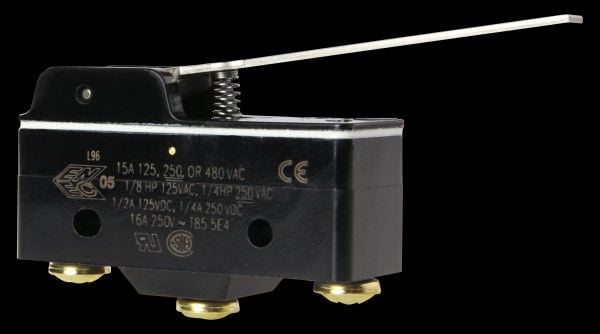

SPDT snap-action switch featuring a straight lever actuator with a 635mm length. Rated for 15A at 250VAC, it offers both normally open and normally closed contacts with silver contact material. This chassis-mount switch utilizes screw terminals and boasts a mechanical life of 20,000,000 cycles and an electrical life of 100,000 cycles. Operating within a temperature range of -55°C to 85°C, it is UL and CSA approved, RoHS compliant, and IP64 rated for dust and water resistance.
Current Rating15A
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Honeywell BZ-2RW805551-A2 technical specifications.
General
Actuator Length
635mm
Actuator Type
STRAIGHT LEVER
Approvals
UL, CSA
Contact Current Rating
15A
Contact Material
Silver
Current Rating
15A
Depth
17.5mm
Differential Travel
0.05inch
Electrical Life
100000Cycles
Length
49.3mm
Material
Plastic
Max Current Rating
15A
Max Operating Temperature
85°C
Mechanical Life
20000000Cycles
Min Operating Temperature
-55°C
Mount
Chassis Mount, Screw
Operating Position
0.03inch
Orientation
Straight
Overtravel
556mm
Package Quantity
5
Packaging
Bulk
Ratings
IP64, Water Resistant, Dust Tight
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
BZ
Switch Function
On-Mom
Termination
Screw
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Weight
331g
Compliance
RoHS
Compliant
Datasheet
Honeywell BZ-2RW805551-A2 Datasheet
Download the complete datasheet for Honeywell BZ-2RW805551-A2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

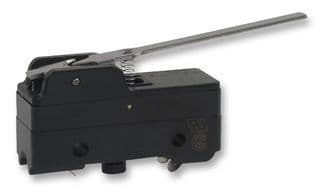

Product Images
