SPDT snap action switch featuring a roller lever actuator with a 26.16mm stainless steel arm. Rated for 16A at 600VAC and 250VDC, with a contact rating of 15A and silver contacts. Offers a mechanical life of 20,000,000 cycles and an electrical life of 100,000 cycles. Mounts via screw terminals and operates within a temperature range of -55°C to 85°C. RoHS compliant and UL, CSA, CE approved.
Package125
Current Rating15A
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Honeywell BZ-2RW822-A2 technical specifications.
General
| Actuator Length | 2616mm |
| Actuator Material | Stainless Steel |
| Actuator Type | ROLLER LEVER |
| Approvals | UL, CSA, CE |
| Package/Case | 125 |
| Contact Current Rating | 15A |
| Contact Material | Silver |
| Contact Type | 1 change-over |
| Current Rating | 15A |
| Depth | 17.45mm |
| Differential Travel | 0.02inch |
| Electrical Life | 100000Cycles |
| Height | 29.2mm |
| Lead Free | Lead Free |
| Length | 49.28mm |
| Material | Plastic |
| Max Current Rating | 16A |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (AC) | 600V |
| Max Voltage Rating (DC) | 250V |
| Mechanical Life | 20000000Cycles |
| Min Operating Temperature | -55°C |
| Mount | Chassis Mount, Screw |
| Operating Force | 167N |
| Operating Position | 0.015inch |
| Orientation | Straight |
| Overtravel | 239mm |
| Package Quantity | 5 |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | BZ |
| Switch Function | On-Mom |
| Termination | Screw |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 125V |
| Weight | 345g |
| Width | 17.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Honeywell BZ-2RW822-A2 Datasheet
Download the complete datasheet for Honeywell BZ-2RW822-A2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

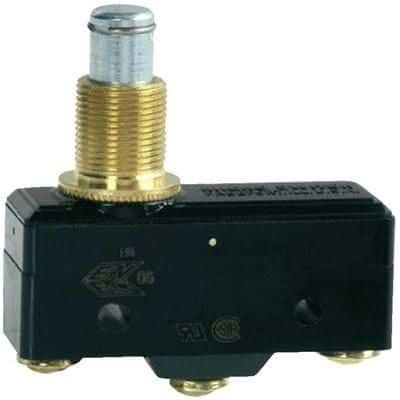

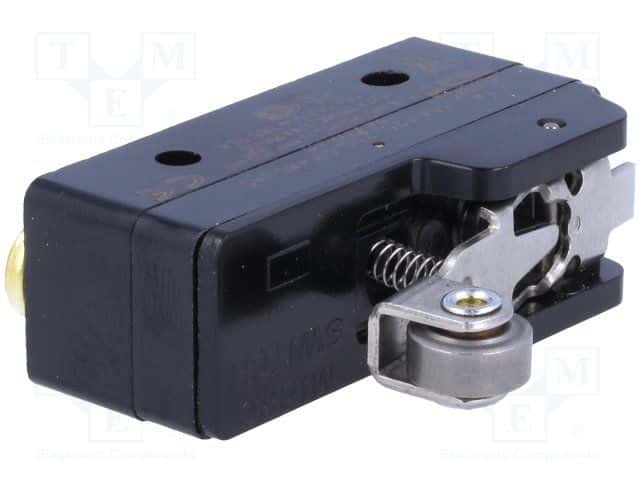

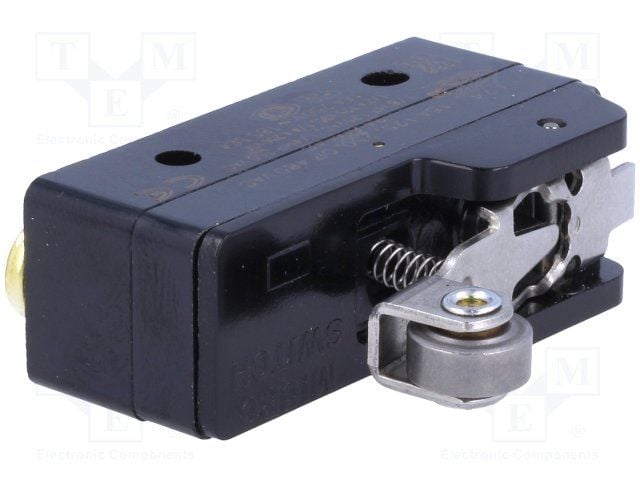

Product Images
