SPDT momentary snap acting switch with a steel roller lever actuator. Features a 15A contact current rating, silver contact material, and a 125VDC/125VAC voltage rating. Operates within a temperature range of -55°C to 85°C, with a mechanical life of 20,000,000 cycles. Panel mountable with quick connect terminals, this RoHS compliant component offers a 167N operating force and 0.015-inch operating position.
Current Rating15A
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Honeywell BZ-2RW822-D5 technical specifications.
General
| Actuator Length | 2616mm |
| Actuator Type | ROLLER LEVER |
| Contact Current Rating | 15A |
| Contact Material | Silver |
| Current Rating | 15A |
| Differential Travel | 0.02inch |
| Material | Plastic |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 600V |
| Max Voltage Rating (DC) | 250V |
| Mechanical Life | 20000000Cycles |
| Mount | Chassis Mount, Screw |
| Operating Force | 167N |
| Operating Position | 0.015inch |
| Orientation | Straight |
| Overtravel | 239mm |
| Package Quantity | 5 |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | BZ |
| Switch Function | On-Mom |
| Termination | Quick Connect |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 125V |
| Weight | 345g |
Compliance
| RoHS | Compliant |
Datasheet
Honeywell BZ-2RW822-D5 Datasheet
Download the complete datasheet for Honeywell BZ-2RW822-D5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

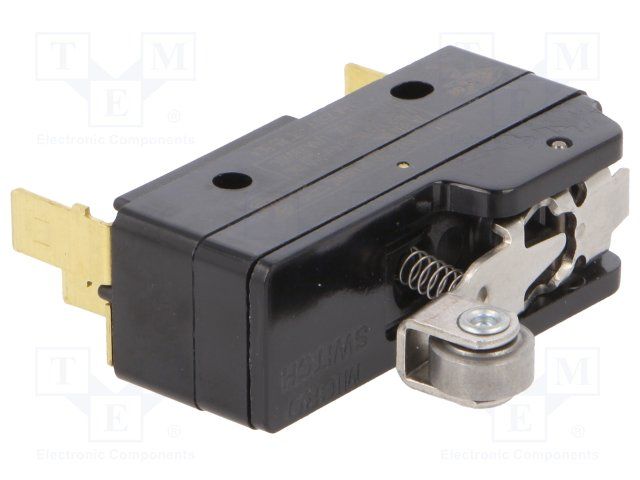

Product Images
