SPDT momentary snap action switch featuring a wide hardened steel roller actuator. Rated for 15A at 125VDC and 125VAC, with a maximum AC voltage rating of 480V and DC voltage rating of 250V. Offers a mechanical life of 20,000,000 cycles and operates within a temperature range of -55°C to 85°C. Equipped with screw terminals for chassis mounting, this switch boasts an operating force of 167N and a differential travel of 0.02 inches.
Current Rating15A
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Honeywell BZ-2RW82212-A2 technical specifications.
General
Actuator Length
267mm
Actuator Type
ROLLER LEVER
Contact Current Rating
15A
Contact Material
Silver
Current Rating
15A
Depth
17.45mm
Differential Travel
0.02inch
Length
49.28mm
Material
Plastic
Max Current Rating
16A
Max Operating Temperature
85°C
Mechanical Life
20000000Cycles
Min Operating Temperature
-55°C
Max Voltage Rating (AC)
480V
Max Voltage Rating (DC)
250V
Mount
Chassis Mount, Screw
Operating Force
167N
Operating Position
1.188inch
Orientation
Straight
Overtravel
239mm
Package Quantity
5
Packaging
Bulk
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Sealable
No (Without)
Series
BZ
Switch Function
On-Mom
Termination
Screw
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Weight
3401g
Compliance
RoHS
Compliant
Datasheet
Honeywell BZ-2RW82212-A2 Datasheet
Download the complete datasheet for Honeywell BZ-2RW82212-A2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

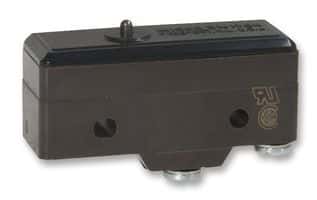

Product Images
