SPDT snap action switch with roller lever actuator, featuring a 16A max current rating and 480VAC/250VDC voltage rating. This general-purpose switch offers a 15A contact current rating with silver contacts and screw termination. Designed for chassis mounting with screw terminals, it operates within a -55°C to 85°C temperature range and boasts a mechanical life of 20,000,000 cycles. IP64 rated for water and dust resistance, this RoHS compliant component is suitable for demanding applications.
Current Rating15A
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Honeywell BZ-2RW8225551-A2 technical specifications.
General
Actuator Length
2616mm
Actuator Type
ROLLER LEVER
Contact Current Rating
15A
Contact Material
Silver
Contact Type
Snap Action
Current Rating
15A
Depth
17.45mm
Differential Travel
0.02inch
Length
49.28mm
Material
Plastic
Max Current Rating
16A
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Max Voltage Rating (AC)
480V
Max Voltage Rating (DC)
250V
Mechanical Life
20000000Cycles
Mount
Chassis Mount, Screw
Number of Positions
2
Operating Force
167N
Operating Position
0.015inch
Orientation
Straight
Overtravel
239mm
Package Quantity
5
Packaging
Bulk
Ratings
IP64, Water Resistant, Dust Tight
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
BZ
Switch Function
On-Mom
Termination
Screw
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Weight
345g
Width
1.94inch
Compliance
RoHS
Compliant
Datasheet
Honeywell BZ-2RW8225551-A2 Datasheet
Download the complete datasheet for Honeywell BZ-2RW8225551-A2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

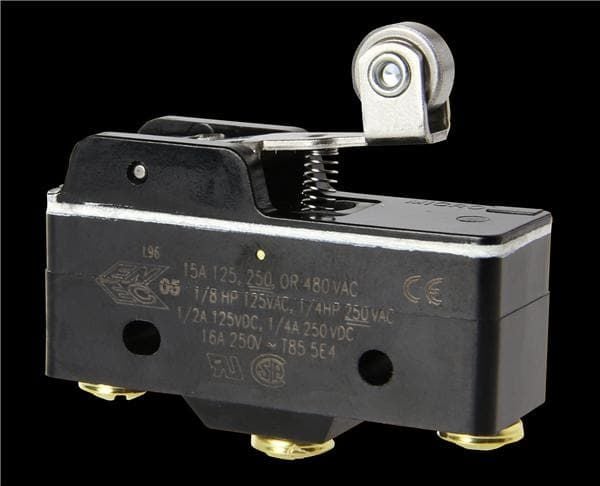

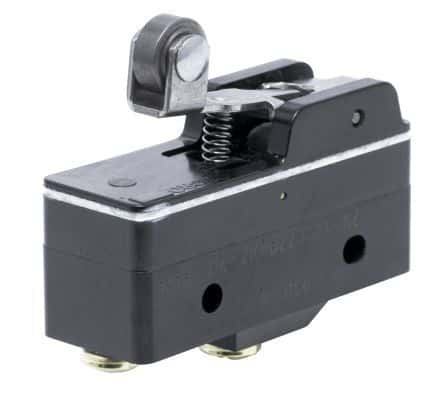

Product Images
