SPDT momentary snap action switch featuring a wide sintered stainless steel roller actuator. Offers a 1A current rating at 250V AC, with gold contacts and screw terminals for reliable connection. Designed for panel mounting, it operates within a temperature range of -55°C to 85°C and boasts a mechanical life of 20,000,000 cycles. Actuator length is 267mm, with a differential travel of 0.02 inches.
Current Rating1A
MountingChassis Mount, Panel, Screw
Quick Jump:
Technical Specifications
Honeywell BZ-2RW82272-A2 technical specifications.
General
Actuator Length
267mm
Actuator Material
Stainless Steel
Actuator Type
ROLLER LEVER
Contact Material
Gold
Contact Type
Snap Action
Current Rating
1A
Depth
17.45mm
Differential Travel
0.02inch
Length
49.28mm
Material
Plastic
Max Current Rating
1A
Max Operating Temperature
85°C
Max Voltage Rating (AC)
250V
Mechanical Life
20000000Cycles
Min Operating Temperature
-55°C
Mount
Chassis Mount, Panel, Screw
Operating Force
167N
Operating Position
3017mm
Orientation
Straight
Overtravel
239mm
Package Quantity
5
Packaging
Bulk
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Sealable
No (Without)
Series
BZ
Switch Function
On-Mom
Termination
Screw
Throw Configuration
SPDT
Voltage Rating (AC)
125V
Weight
3401g
Width
1.94inch
Compliance
RoHS
Compliant
Datasheet
Honeywell BZ-2RW82272-A2 Datasheet
Download the complete datasheet for Honeywell BZ-2RW82272-A2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

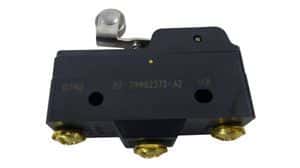

Product Images
