SPDT snap acting switch with a momentary action, featuring a wide sintered stainless steel roller actuator and screw terminals. Rated for 15A contact current and 125VDC, with a maximum AC voltage rating of 480V and DC voltage rating of 250V. Offers a mechanical life of 20,000,000 cycles and an electrical life of 50,000 cycles, operating within a temperature range of -55°C to 85°C. This RoHS compliant component is designed for chassis mounting and includes CSA and CE approvals.
Current Rating15A
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Honeywell BZ-2RW8255-A2-S technical specifications.
General
Actuator Length
4822mm
Actuator Material
Stainless Steel
Actuator Type
ROLLER LEVER
Approvals
CSA, CE
Contact Current Rating
15A
Contact Material
Silver
Current Rating
15A
Depth
17.45mm
Electrical Life
50000Cycles
Material
Plastic
Max Current Rating
16A
Max Operating Temperature
85°C
Max Voltage Rating (AC)
480V
Max Voltage Rating (DC)
250V
Mechanical Life
20000000Cycles
Min Operating Temperature
-55°C
Mount
Chassis Mount, Screw
Orientation
Straight
Overtravel
396mm
Package Quantity
5
Packaging
Bulk
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
BZ
Switch Function
On-Mom
Termination
Screw
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Weight
3401g
Compliance
RoHS
Compliant
Datasheet
Honeywell BZ-2RW8255-A2-S Datasheet
Download the complete datasheet for Honeywell BZ-2RW8255-A2-S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

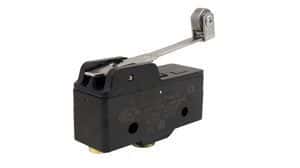

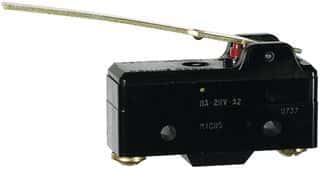

Product Images
