SPDT momentary snap acting switch featuring a wide sintered stainless steel roller actuator. Rated for 15A at 125VDC, with a 0.5A, 125VDC rating also specified. Offers a mechanical life of 20,000,000 cycles and an electrical life of 100,000 cycles. Includes screw terminals for termination and chassis mounting. Operating temperature range spans -55°C to 85°C.
Package125
Current Rating15A
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Honeywell BZ-2RW826-A2 technical specifications.
General
Actuator Type
ROLLER LEVER
Approvals
CSA, CE
Package/Case
125
Contact Current Rating
15A
Current Rating
15A
Depth
17.5mm
Differential Travel
0.02inch
Electrical Life
100000Cycles
Length
49.3mm
Material
Plastic
Max Current Rating
15A
Max Operating Temperature
85°C
Mechanical Life
20000000Cycles
Min Operating Temperature
-55°C
Mount
Chassis Mount, Screw
Operating Force
167N
Operating Position
4134mm
Orientation
Straight
Overtravel
239mm
Package Quantity
5
Packaging
Bulk
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Sealable
No (Without)
Series
BZ
Switch Function
On-Mom
Termination
Screw
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Weight
3401g
Compliance
RoHS
Compliant
Datasheet
Honeywell BZ-2RW826-A2 Datasheet
Download the complete datasheet for Honeywell BZ-2RW826-A2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

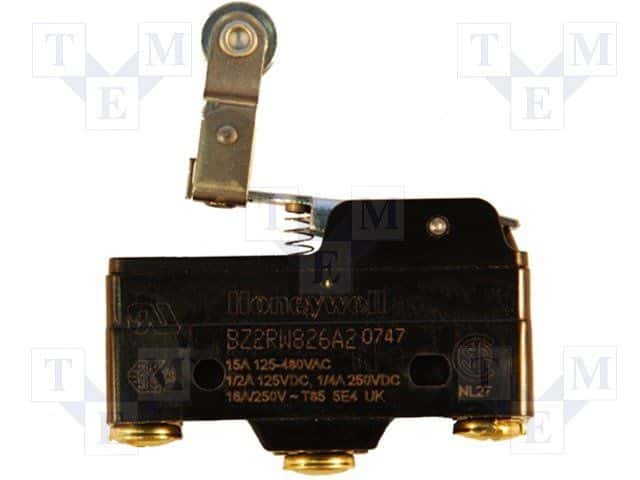

Product Images
