SPDT momentary snap acting switch with a 15A contact current rating and silver contacts. Features a straight lever actuator with a 635mm length and 556mm overtravel. Rated for 125VDC and 125VAC, with a maximum AC voltage rating of 480V and DC voltage rating of 250V. Offers a mechanical life of 20,000,000 cycles and operates within a temperature range of -55°C to 85°C. Designed for panel mounting with screw terminals and a chassis mount. RoHS compliant.
Current Rating15A
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Honeywell BZ-2RW8405-A2 technical specifications.
General
Actuator Length
635mm
Actuator Type
STRAIGHT LEVER
Contact Current Rating
15A
Contact Material
Silver
Current Rating
15A
Material
Plastic
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Max Voltage Rating (AC)
480V
Max Voltage Rating (DC)
250V
Mechanical Life
20000000Cycles
Mount
Chassis Mount, Screw
Orientation
Straight
Overtravel
556mm
Packaging
Bulk
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Sealable
No (Without)
Series
BZ
Switch Function
On-Mom
Termination
Screw
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Weight
3401g
Compliance
RoHS
Compliant
Datasheet
Honeywell BZ-2RW8405-A2 Datasheet
Download the complete datasheet for Honeywell BZ-2RW8405-A2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

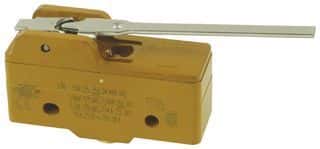

Product Images
