SPDT snap-action switch featuring silver contacts, rated for 16A at 277VAC and 250VDC. This general-purpose switch offers a mechanical life of 20,000,000 cycles and operates with a 5.28N force. Designed for chassis mounting via screw terminals, it supports a temperature range of -55°C to 85°C.
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Honeywell BZ-7R55T-S technical specifications.
General
| Contact Material | Silver |
| Depth | 17.45mm |
| Length | 49.28mm |
| Material | Plastic |
| Max Current Rating | 16A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 277V |
| Max Voltage Rating (DC) | 250V |
| Mechanical Life | 20000000Cycles |
| Mount | Chassis Mount, Screw |
| Operating Force | 528N |
| Orientation | Straight |
| Package Quantity | 5 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | BZ |
| Switch Function | On-Mom |
| Termination | Screw |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 125V |
| Weight | 3401g |
Compliance
| RoHS | Compliant |
Datasheet
Honeywell BZ-7R55T-S Datasheet
Download the complete datasheet for Honeywell BZ-7R55T-S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

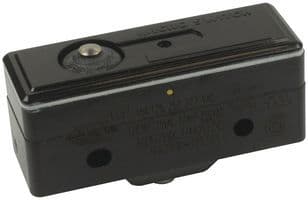

Product Images
