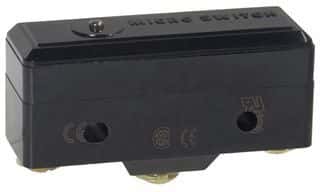

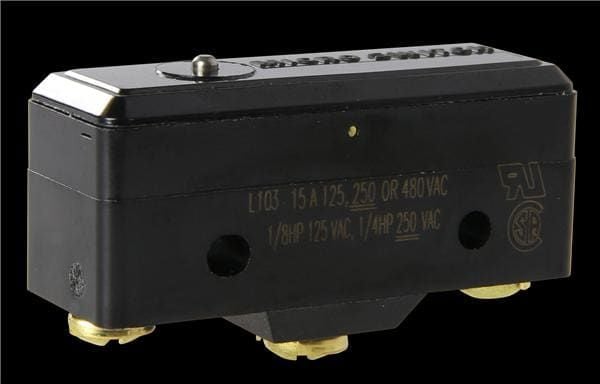

SPDT snap-action switch featuring a plunger actuator and screw termination. Rated for 15A at 480VAC (186.42VA), with a 25N operating force. Constructed with silver contacts and a plastic housing, it offers a mechanical life of 20,000,000 cycles. Operating temperature range is -55°C to 85°C, with screw mounting for chassis or panel installation.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Honeywell BZ-R-A2 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Type | PLUNGER |
| Contact Material | Silver |
| Contact Type | Snap Action |
| Current Rating | 15A |
| Depth | 0.68inch |
| Lead Free | Lead Free |
| Length | 24.13mm |
| Material | Plastic |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 480V |
| Mechanical Life | 20000000Cycles |
| Mount | Chassis Mount, Panel, Screw |
| Operating Force | 25N |
| Operating Position | 1588mm |
| Orientation | Straight |
| Package Quantity | 5 |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | BZ |
| Switch Function | On-Mom |
| Termination | Screw |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 250V |
| Weight | 3401g |
| Width | 1.94inch |
| RoHS | Compliant |
