SPDT momentary snap acting switch with a stainless steel pin plunger actuator. Features a 10A contact current rating at 125VAC and 250VDC, with silver contacts. This chassis mount switch offers a mechanical life of 20,000,000 cycles and operates within a temperature range of -55°C to 85°C. Termination is via screw terminals, and the unit is RoHS compliant.
Package125
Current Rating10A
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Honeywell BZ-R21-A2 technical specifications.
General
Actuator Material
Stainless Steel
Actuator Type
PIN PLUNGER
Package/Case
125
Contact Current Rating
10A
Contact Material
Silver
Current Rating
10A
Depth
17.5mm
Length
49.3mm
Material
Plastic
Max Current Rating
10A
Max Operating Temperature
85°C
Mechanical Life
20000000Cycles
Min Operating Temperature
-55°C
Mount
Chassis Mount, Screw
Operating Force
111N
Orientation
Straight
Package Quantity
5
Packaging
Bulk
Reach SVHC Compliant
No
RoHS Compliant
Yes
Sealable
No (Without)
Series
BZ
Switch Function
On-Mom
Termination
Screw
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
250V
Weight
3401g
Compliance
RoHS
Compliant
Datasheet
Honeywell BZ-R21-A2 Datasheet
Download the complete datasheet for Honeywell BZ-R21-A2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

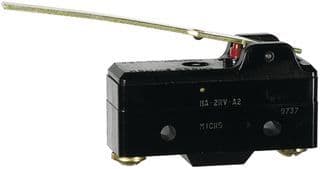

Product Images
