SPDT momentary snap acting switch with silver contacts, rated for 15A at 480VAC and 250VDC. Features a 0.43mm actuator, screw terminals, and chassis/panel mount for straight orientation. Operating force is 284N with a pretravel of 0.012 inches. Constructed from plastic, it offers a mechanical life of 20,000,000 cycles and operates within a temperature range of -55°C to 85°C. RoHS compliant.
Current Rating15A
MountingChassis Mount, Panel, Screw
Quick Jump:
Technical Specifications
Honeywell BZ-R370-P5 technical specifications.
General
Contact Material
Silver
Current Rating
15A
Depth
17.45mm
Length
49.28mm
Material
Plastic
Max Current Rating
15A
Max Operating Temperature
85°C
Mechanical Life
20000000Cycles
Min Operating Temperature
-55°C
Max Voltage Rating (AC)
480V
Mount
Chassis Mount, Panel, Screw
Operating Force
284N
Operating Position
0.625inch
Orientation
Straight
Package Quantity
5
Packaging
Bulk
Pretravel
0.012inch
RoHS Compliant
Yes
Sealable
No (Without)
Series
BZ
Switch Function
On-Mom
Termination
Screw
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
250V
Weight
3401g
Compliance
RoHS
Compliant
Datasheet
Honeywell BZ-R370-P5 Datasheet
Download the complete datasheet for Honeywell BZ-R370-P5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

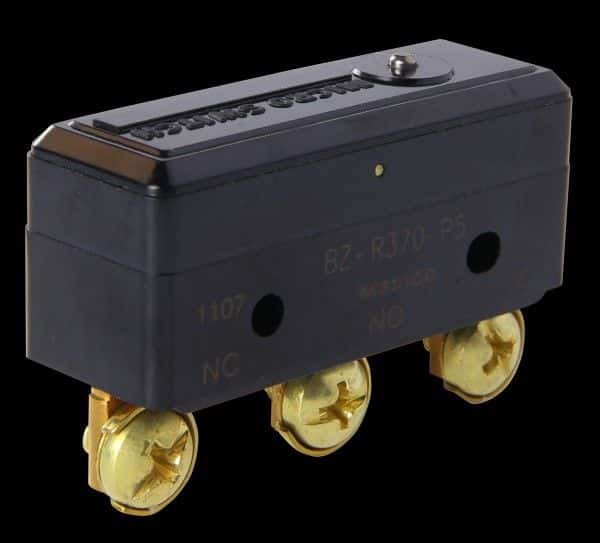

Product Images
