SPDT momentary snap acting/limit switch featuring a hardened steel plunger actuator and screw terminals. Rated for 15A at 480V AC and 250V DC, with a mechanical life of 20 million cycles. Operating temperature range from -55°C to 85°C. Panel mountable with a straight orientation and 5.07mm overtravel.
MountingPanel, Screw
Quick Jump:
Technical Specifications
Honeywell BZ-RQX66 technical specifications.
General
| Actuator Material | Steel |
| Contact Material | Silver |
| Depth | 17.45mm |
| Length | 49.28mm |
| Material | Plastic |
| Max Current Rating | 15A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 480V |
| Max Voltage Rating (DC) | 250V |
| Mechanical Life | 20000000Cycles |
| Mount | Panel, Screw |
| Operating Force | 267N |
| Orientation | Straight |
| Overtravel | 478mm |
| Package Quantity | 5 |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | BZ |
| Switch Function | On-On |
| Termination | Solder |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 125V |
| Weight | 3401g |
Compliance
| RoHS | Compliant |
Datasheet
Honeywell BZ-RQX66 Datasheet
Download the complete datasheet for Honeywell BZ-RQX66 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

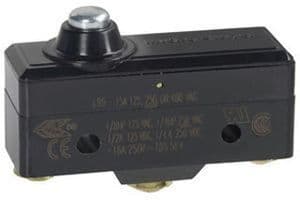

Product Images
