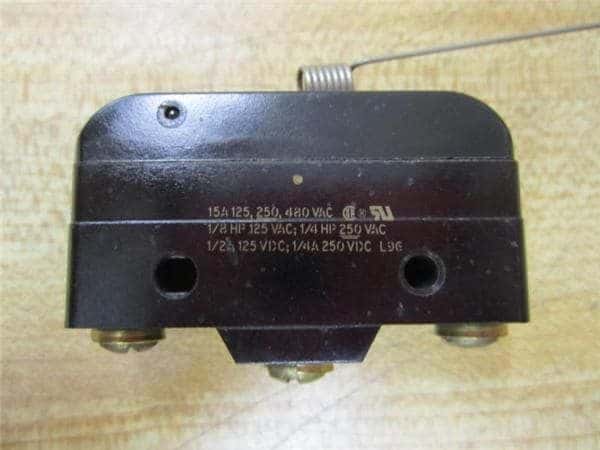

SPDT momentary snap acting/limit switch with screw terminals and panel mount. Features a 1604mm actuator, silver contacts, and a 15A current rating with a maximum of 16A. Operates within a temperature range of -55°C to 85°C and supports AC voltage ratings of 125V and 480V. Offers a mechanical life of 20,000,000 cycles and an operating force of 0.5N. Constructed from plastic, this RoHS compliant switch is designed for panel and chassis mounting.
Sign in to ask questions about the Honeywell BZ-RW53-A2 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Honeywell BZ-RW53-A2 technical specifications.
| Actuator Length | 1604mm |
| Contact Material | Silver |
| Current Rating | 15A |
| Depth | 17.45mm |
| Material | Plastic |
| Max Current Rating | 16A |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (AC) | 480V |
| Mechanical Life | 20000000Cycles |
| Min Operating Temperature | -55°C |
| Mount | Panel, Chassis Mount, Screw |
| Operating Force | 0.5N |
| Orientation | Straight |
| Package Quantity | 5 |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | BZ |
| Switch Function | On-Mom |
| Termination | Screw |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
| Weight | 3401g |
| RoHS | Compliant |
