SPDT snap acting/limit switch featuring a momentary action and a wide lever actuator. Rated for 15A (16A max) at 125V AC (480V AC max), with silver contacts. Offers a mechanical life of 20,000,000 cycles and operates within a temperature range of -55°C to 85°C. Panel and chassis mountable via screw terminals, with a 7.14mm actuator length and 318mm overtravel.
Current Rating15A
MountingChassis Mount, Panel, Screw
Quick Jump:
Technical Specifications
Honeywell BZ-RW84414-A2 technical specifications.
General
Actuator Length
3658mm
Contact Material
Silver
Current Rating
15A
Depth
17.45mm
Length
49.28mm
Material
Plastic
Max Current Rating
16A
Max Operating Temperature
85°C
Mechanical Life
20000000Cycles
Min Operating Temperature
-55°C
Max Voltage Rating (AC)
480V
Mount
Chassis Mount, Panel, Screw
Operating Force
10gf
Orientation
Straight
Overtravel
318mm
Package Quantity
5
Packaging
Bulk
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Sealable
No (Without)
Series
BZ
Switch Function
On-Mom
Termination
Screw
Throw Configuration
SPDT
Voltage Rating (AC)
125V
Weight
3401g
Compliance
RoHS
Compliant
Datasheet
Honeywell BZ-RW84414-A2 Datasheet
Download the complete datasheet for Honeywell BZ-RW84414-A2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

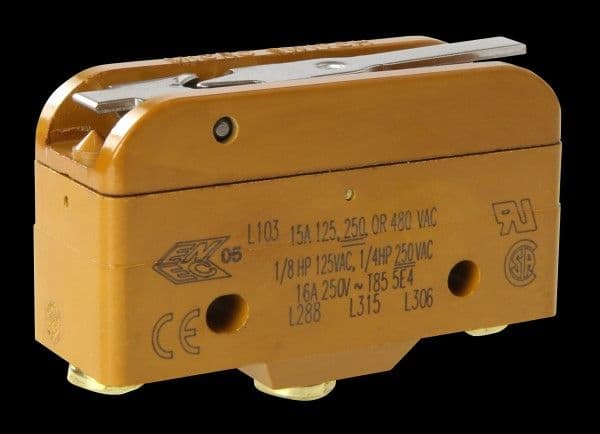

Product Images
