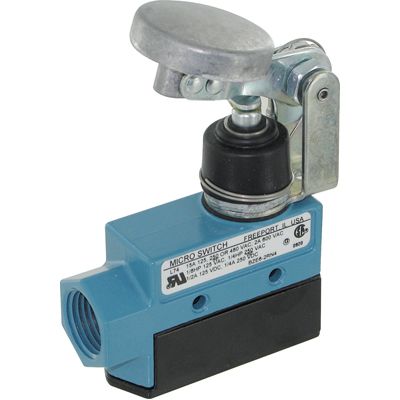

SPDT snap-acting switch with a momentary action, featuring a 15A current rating and a 125V AC voltage rating. This panel-mount switch includes a lever actuator and screw terminals for termination. It operates within a temperature range of -32°C to 71°C and offers IP66 and IP54 ratings for water resistance. RoHS compliant with UL and CSA approvals.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Honeywell BZE6-2RN4 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Honeywell BZE6-2RN4 technical specifications.
| Actuator Type | Pushbutton |
| Approvals | UL, CSA |
| Contact Type | Snap Action |
| Current Rating | 15A |
| Depth | 44.4mm |
| Length | 25.4mm |
| Max Current Rating | 15A |
| Max Operating Temperature | 71°C |
| Min Operating Temperature | -32°C |
| Max Voltage Rating (DC) | 250V |
| Mount | Chassis Mount, Screw |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Force | 556N |
| Orientation | Straight |
| Overtravel | 556mm |
| Packaging | Bulk |
| Pretravel | 478mm |
| Ratings | IP54, Water Resistant, IP66 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | E6 |
| Switch Function | On-Mom |
| Termination | Conduit |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 125V |
| Width | 77.2mm |
| RoHS | Compliant |
