SPDT snap-action limit switch featuring an adjustable rod lever actuator. Rated for 15A at 125VAC and 125VDC, with a maximum DC voltage rating of 250V. Offers a 1.95N operating force and 0.5A current rating for specific applications. Constructed with screw mounting and conduit termination, boasting IP54 and IP66 ratings for water resistance. Operating temperature range spans from -32°C to 71°C.
Current Rating15A
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Honeywell BZE6-2RN62 technical specifications.
General
| Actuator Type | Lever |
| Contact Current Rating | 15A |
| Contact Type | Snap Action |
| Current Rating | 15A |
| Depth | 77.2mm |
| Differential Travel | 582mm |
| Length | 25.4mm |
| Max Current Rating | 15A |
| Max Operating Temperature | 71°C |
| Min Operating Temperature | -32°C |
| Max Voltage Rating (DC) | 250V |
| Mount | Chassis Mount, Screw |
| Operating Force | 195N |
| Orientation | Straight |
| Overtravel | 2129mm |
| Packaging | Bulk |
| Pretravel | 1824mm |
| Ratings | IP54, Water Resistant, IP66 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | E6 |
| Switch Function | On-Mom |
| Termination | Conduit |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 125V |
| Width | 44.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Honeywell BZE6-2RN62 Datasheet
Download the complete datasheet for Honeywell BZE6-2RN62 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

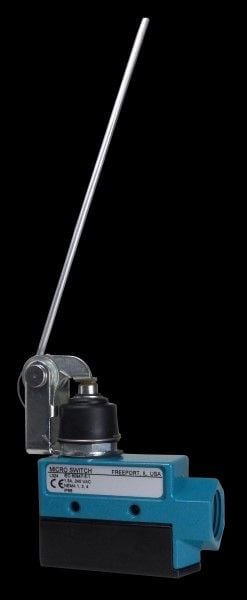

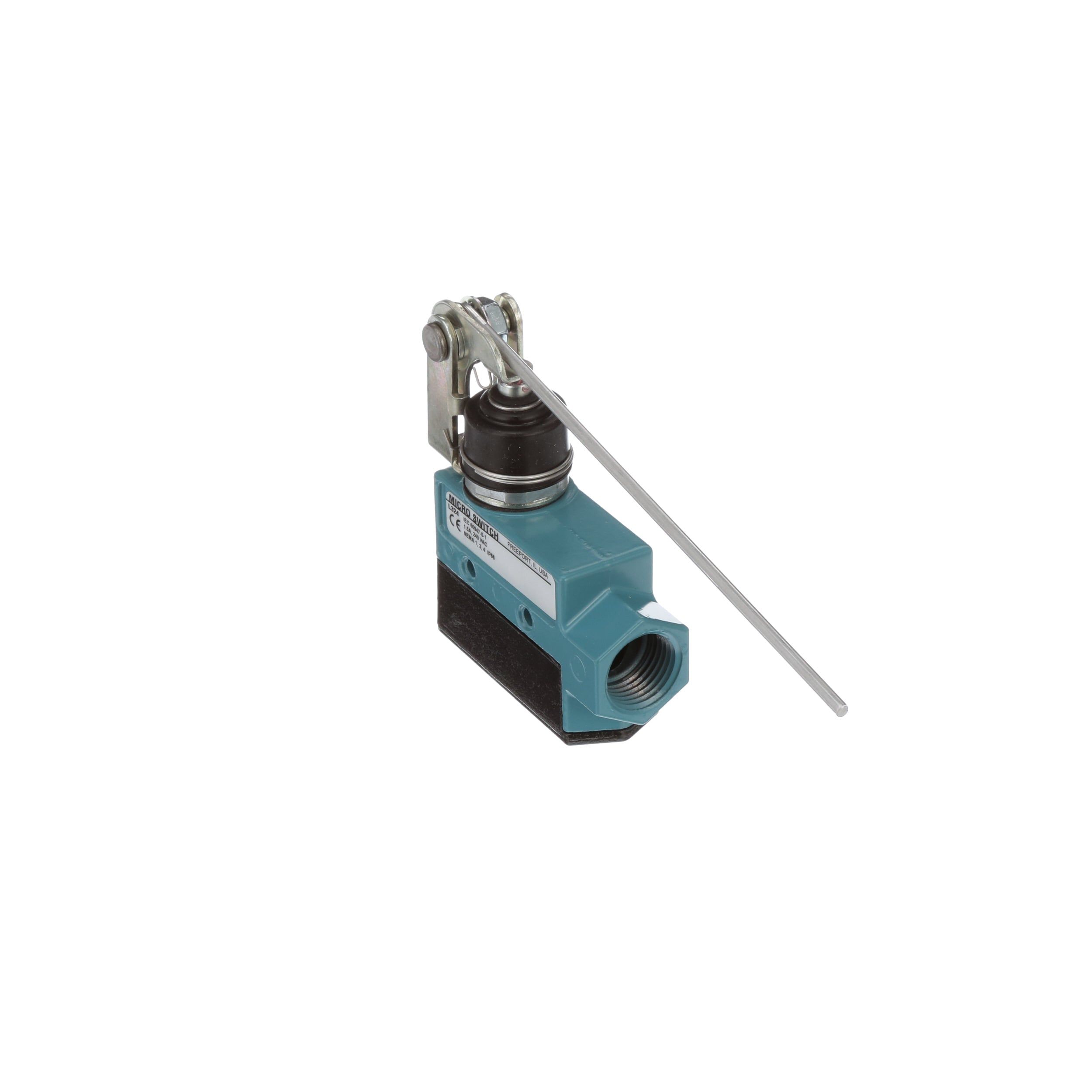

Product Images
