Snap acting/limit switch featuring a top plunger actuator and SPDT momentary contact configuration. This panel mount switch offers a 1A current rating at 250V AC, with gold contact material for reliable performance. Operating between -32°C and 121°C, it includes UL and CSA approvals and a chassis mount with screw termination.
Current Rating1A
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Honeywell BZE6-2RQ72 technical specifications.
General
| Actuator Type | TOP PLUNGER |
| Approvals | UL, CSA |
| Contact Material | Gold |
| Contact Type | Snap Action |
| Current Rating | 1A |
| Depth | 77.2mm |
| Height | 63.88mm |
| Length | 77.22mm |
| Max Operating Temperature | 121°C |
| Min Operating Temperature | -32°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Chassis Mount, Screw |
| Operating Force | 361N |
| Orientation | Straight |
| Overtravel | 556mm |
| Packaging | Bulk |
| Ratings | IP40 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | No |
| Series | E6 |
| Switch Function | On-Mom |
| Termination | Conduit |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 250V |
| Width | 44.4mm |
Compliance
| RoHS | Not Compliant |
Datasheet
Honeywell BZE6-2RQ72 Datasheet
Download the complete datasheet for Honeywell BZE6-2RQ72 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

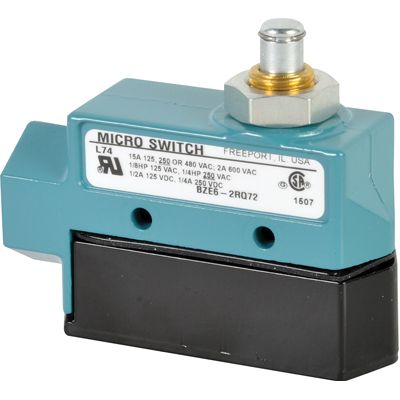

Product Images
