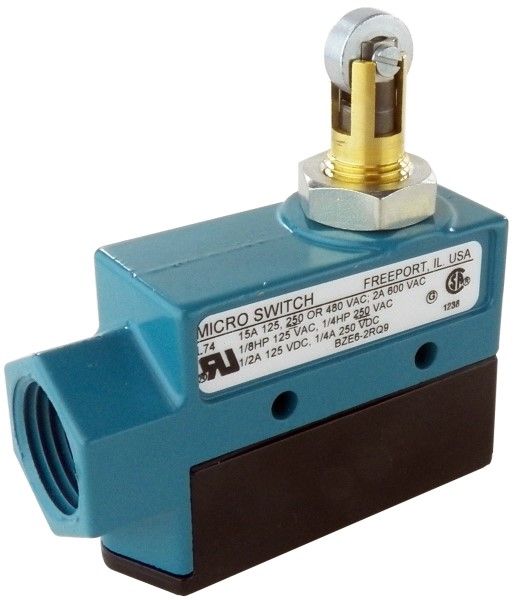

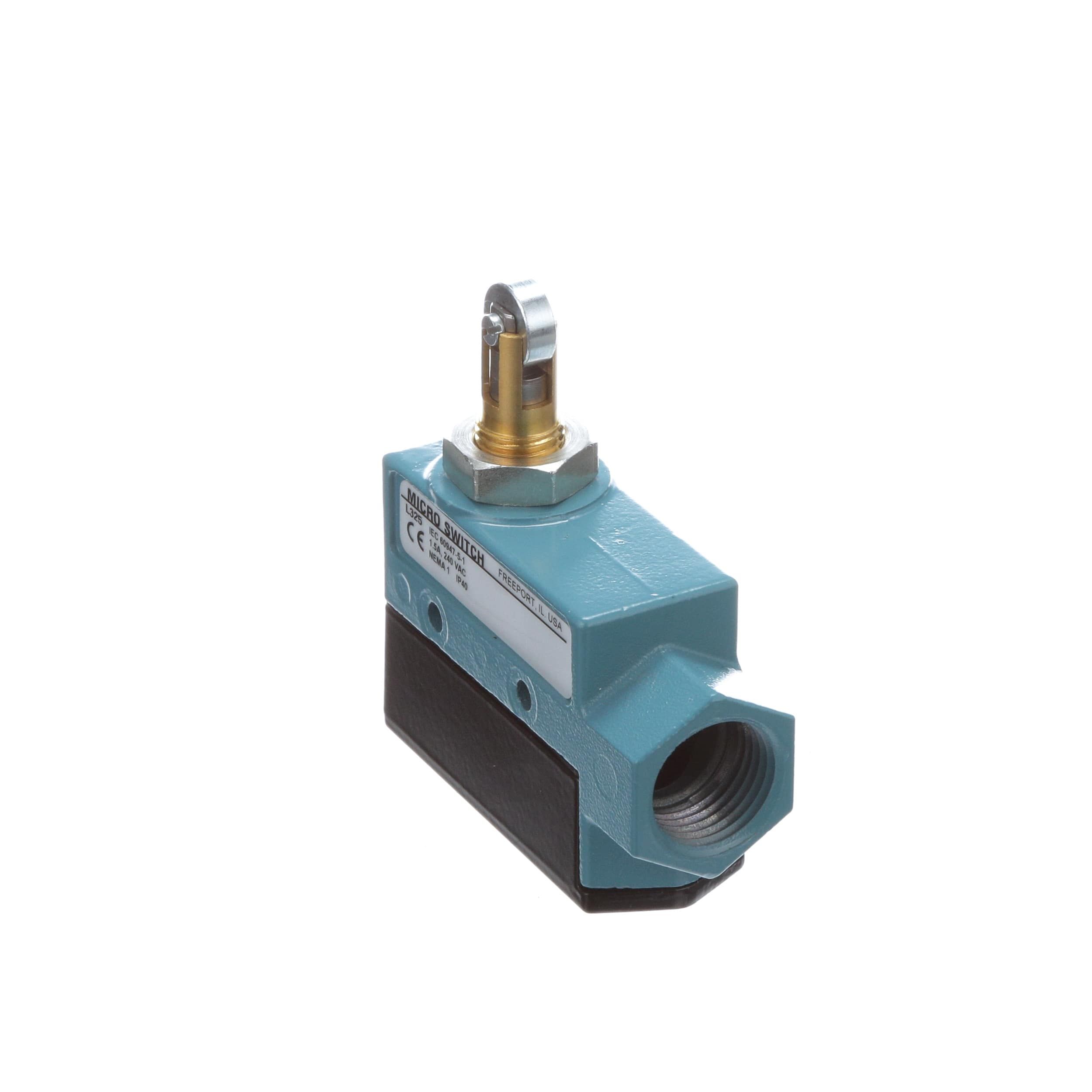

SPDT snap-action limit switch with roller lever actuator. Features gold/silver contacts, 15A current rating, and 125V AC/DC voltage rating. Operates within a temperature range of -32°C to 71°C. Chassis mountable with screw terminals and conduit termination. RoHS compliant with IP40 protection.
Current Rating15A
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Honeywell BZE6-2RQ9 technical specifications.
General
Actuator Type
ROLLER LEVER
Approvals
UL, CSA, CE
Contact Current Rating
15A
Contact Material
Gold, Silver
Contact Type
Snap Action
Current Rating
15A
Depth
77.2mm
Length
25.4mm
Max Current Rating
500mA
Max Operating Temperature
71°C
Min Operating Temperature
-32°C
Max Voltage Rating (DC)
250V
Mount
Chassis Mount, Screw
Number of Poles
1
Number of Positions
2
Operating Force
361N
Orientation
Straight
Overtravel
355mm
Packaging
Bulk
Ratings
IP40
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
E6
Switch Function
On-Mom
Termination
Conduit
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Width
44.4mm
Compliance
RoHS
Compliant
