SPDT momentary snap acting switch with a hardened steel plunger actuator. Features a 15A contact current rating at 125VDC, a 7.54mm pretravel, and 198mm overtravel. Designed for panel mounting with screw terminals and a 667N operating force. Rated IP65 for water resistance and dust tightness, with a mechanical life of 10,000,000 cycles. Operates within a temperature range of -30°C to 71°C.
Package125
Current Rating15A
MountingChassis Mount
Quick Jump:
Technical Specifications
Honeywell BZE7-2RN-C technical specifications.
General
| Actuator Type | PLUNGER |
| Package/Case | 125 |
| Contact Current Rating | 15A |
| Contact Type | 1 change-over |
| Current Rating | 15A |
| Material | Aluminium |
| Max Operating Temperature | 71°C |
| Mechanical Life | 10000000Cycles |
| Min Operating Temperature | -30°C |
| Mount | Chassis Mount |
| Operating Force | 667N |
| Overtravel | 556mm |
| Package Quantity | 1 |
| Packaging | Bulk |
| Pretravel | 198mm |
| Ratings | IP65, Water Resistant, Dust Tight |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | E7 |
| Switch Function | On-Mom |
| Termination | Conduit |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 125V |
Compliance
| RoHS | Compliant |
Datasheet
Honeywell BZE7-2RN-C Datasheet
Download the complete datasheet for Honeywell BZE7-2RN-C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

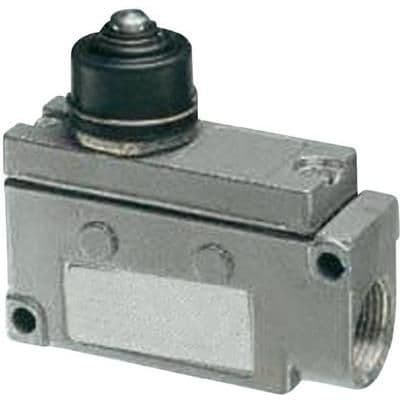

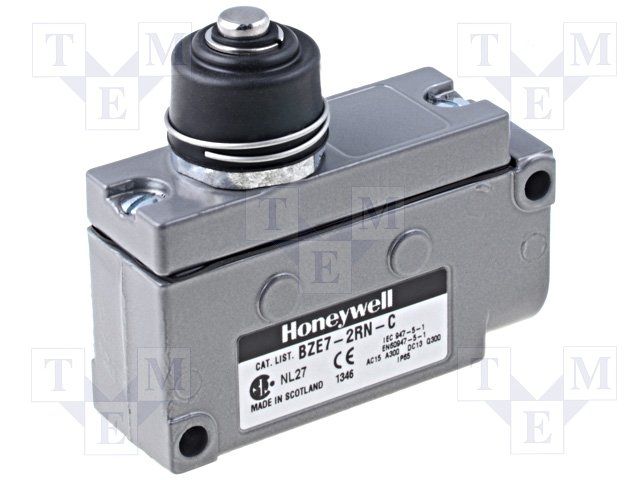

Product Images
