Snap acting/limit switch featuring a steel roller lever plunger actuator and SPDT throw configuration. Offers a 15A current rating at 125VDC and 125VAC, with a maximum AC voltage rating of 600V and DC voltage rating of 250V. Designed for panel mounting with a threaded body and conduit termination, this switch operates within a temperature range of -32°C to 71°C. IP66 rated for water resistance and dust tightness, it includes UL and CSA approvals.
Current Rating15A
MountingChassis Mount, Flanges
Quick Jump:
Technical Specifications
Honeywell BZV6-2RN2 technical specifications.
General
| Actuator Type | ROLLER LEVER |
| Approvals | UL, CSA |
| Contact Type | Snap Action |
| Current Rating | 15A |
| Depth | 54.1mm |
| Height | 101.6mm |
| Length | 77.22mm |
| Max Operating Temperature | 71°C |
| Min Operating Temperature | -32°C |
| Max Voltage Rating (AC) | 600V |
| Max Voltage Rating (DC) | 250V |
| Mount | Chassis Mount, Flanges |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Force | 556N |
| Orientation | Straight |
| Overtravel | 556mm |
| Pretravel | 478mm |
| Ratings | IP66, Water Resistant, Dust Tight |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | V6 |
| Switch Function | On-Mom |
| Termination | Conduit |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 125V |
| Width | 44.45mm |
Compliance
| RoHS | Compliant |
Datasheet
Honeywell BZV6-2RN2 Datasheet
Download the complete datasheet for Honeywell BZV6-2RN2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

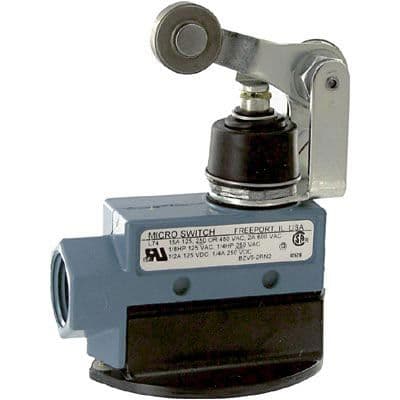

Product Images
