Absolute pressure sensor with a 2 psi to 15 psi range, featuring 0.25% accuracy. This board mount sensor utilizes a Wheatstone bridge analog output and operates from a 3V to 16V DC supply voltage. Designed for PCB mounting via through-hole termination, it is packaged in a SIP with a barbed port style. Operating temperature range is -25°C to 85°C, and it is RoHS compliant.
PackageSIP
MountingPCB, Through Hole
Quick Jump:
Technical Specifications
Honeywell CPC15AFH technical specifications.
General
Accuracy
0.25%
Package/Case
SIP
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Pressure
45PSI
Max Supply Current
3.5mA
Max Supply Voltage (DC)
16V
Min Supply Voltage (DC)
3V
Max Supply Voltage
16V
Min Supply Voltage
3V
Mount
PCB, Through Hole
Operating Pressure
15PSI
Operating Supply Voltage
12V
Output
ANALOG
Output Type
Wheatstone Bridge, Analog
Output Voltage
90mV
Package Quantity
5
Packaging
Rail/Tube
Port Style
Barbed
Pressure Type
Absolute
Primary Type
PRESSURE SENSOR
Radiation Hardening
No
RoHS Compliant
Yes
Series
CPC
Termination
PC Pin
DC Rated Voltage
12V
Compliance
RoHS
Compliant
Datasheet
Honeywell CPC15AFH Datasheet
Download the complete datasheet for Honeywell CPC15AFH to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

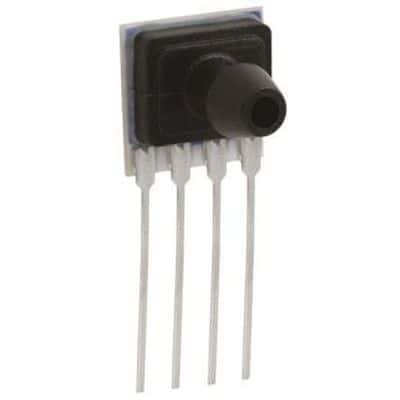

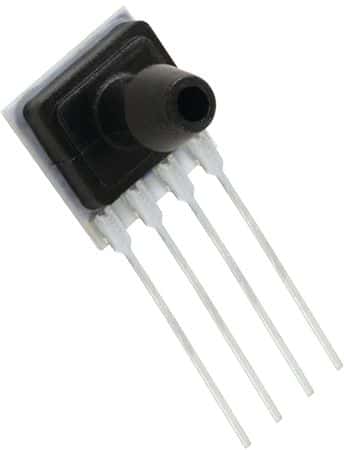

Product Images
