AC/DC Hall Effect Current Sensor for automotive applications. Features 1A current rating and sensing capability with 0.5% accuracy. Operates across a -25°C to 85°C temperature range, accepting supply voltages from 6V to 16V DC. Delivers a maximum output voltage of 400mV with a 100µs response time. Designed for screw mounting with wire/connector termination and a 10.9mm wire/cable diameter.
FrequencyN/A
Package100
Current2.5mA
Current Rating1A
Quick Jump:
Technical Specifications
Honeywell CSDA1DA technical specifications.
General
| Accuracy | 0.5% |
| Package/Case | 100 |
| Current Rating | 1A |
| Current Sensing | 1A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Max Output Voltage | 400mV |
| Max Supply Current | 12mA |
| Max Supply Voltage (DC) | 16V |
| Min Supply Voltage (DC) | 6V |
| Max Supply Voltage | 16V |
| Min Supply Voltage | 6V |
| Mount | Screw |
| Nominal Supply Current | 12mA |
| Number of Channels | 1 |
| Operating Frequency | N/A |
| Output Current | 20mA |
| Output Type | Voltage |
| Output Voltage | 400mV |
| Overall Depth | 25.4mm |
| Package Quantity | 5 |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| Response Time | 100us |
| RoHS Compliant | Yes |
| Series | CSDA |
| Supply Current | 2.5mA |
| Termination | WIRE/CONNECTOR |
| Wire/Cable Diameter | 10.9mm |
Compliance
| RoHS | Compliant |
Datasheet
Honeywell CSDA1DA Datasheet
Download the complete datasheet for Honeywell CSDA1DA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

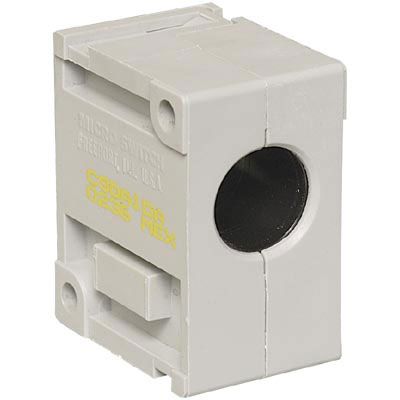

Product Images
