Hall effect current sensor with 0.5% accuracy, designed for 8VDC to 16VDC supply. Features a 7.5A current rating and sensing capability, with a 100µs response time. This single-channel digital output sensor offers a 300mV output voltage and operates within a -25°C to 85°C temperature range. Chassis mountable via screw, it comes in bulk packaging.
FrequencyN/A
Package100
Current Rating7.5A
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Honeywell CSDB1CC technical specifications.
General
| Accuracy | 0.5% |
| Package/Case | 100 |
| Current Rating | 7.5A |
| Current Sensing | 7.5A |
| Depth | 70.1mm |
| Length | 5.6mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Max Supply Current | 16mA |
| Max Supply Voltage (DC) | 16V |
| Min Supply Voltage (DC) | 8V |
| Max Supply Voltage | 16V |
| Min Supply Voltage | 8V |
| Mount | Chassis Mount, Screw |
| Nominal Supply Current | 6.5A |
| Number of Channels | 1 |
| Operating Frequency | N/A |
| Output Type | Digital |
| Output Voltage | 300mV |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| Response Time | 100us |
| Series | CSD |
| Switching Current | 100mA |
| Width | 25.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Honeywell CSDB1CC Datasheet
Download the complete datasheet for Honeywell CSDB1CC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

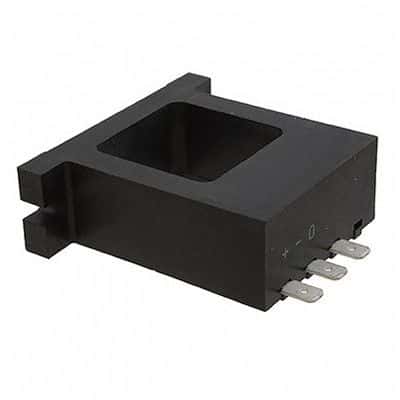

Product Images
