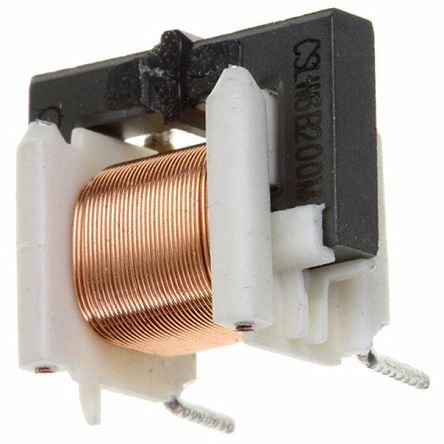

Open loop Hall effect current sensor for AC/DC applications, featuring a 200mA current rating and sensing capability. This module offers 1.5% accuracy, a 3µs response time, and operates within a 4.5V to 10.5V supply voltage range, with a nominal supply current of 9mA. Designed for PCB mounting with solder termination, it functions across a -25°C to 100°C temperature range.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Honeywell CSLW6B200M datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Honeywell CSLW6B200M technical specifications.
| Accuracy | 1.5% |
| Package/Case | Module |
| Coil Resistance | 4R |
| Current Rating | 200mA |
| Current Sensing | 200mA |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -25°C |
| Max Supply Current | 9mA |
| Max Supply Voltage (DC) | 10.5V |
| Min Supply Voltage (DC) | 4.5V |
| Max Supply Voltage | 10.5V |
| Min Supply Voltage | 4.5V |
| Mount | PCB |
| Nominal Supply Current | 9mA |
| Number of Channels | 1 |
| Operating Frequency | N/A |
| Operating Supply Voltage | 10V |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Response Time | 3us |
| RoHS Compliant | Yes |
| Series | CSLW |
| Termination | Solder |
| Type | Hall Effect |
| RoHS | Compliant |
