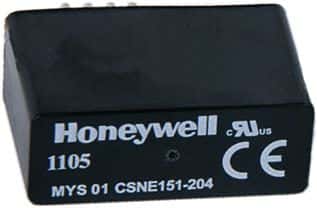

The CSNE151-204 is a Hall effect current sensor from Honeywell, offering an accuracy of 0.5% and a coil resistance of 190R. It can handle a maximum current of 90A and has a frequency of 150kHz. The device operates within a temperature range of -40°C to 75°C and is powered by a 15V supply voltage. It is mounted on a PCB and has a nominal supply current of 12mA.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Honeywell CSNE151-204 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Honeywell CSNE151-204 technical specifications.
| Accuracy | 0.5% |
| Coil Resistance | 190R |
| Current Rating | 90A |
| Current Sensing | 90A |
| Frequency | 150kHz |
| Linearity | 0.2% |
| Max Operating Temperature | 75°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 10mA |
| Mount | PCB |
| Nominal Supply Current | 12mA |
| Number of Channels | 1 |
| Operating Frequency | N/A |
| Operating Supply Voltage | 15V |
| Overall Depth | 12.7mm |
| Package Quantity | 40 |
| Packaging | Bulk |
| Response Time | 1us |
| RoHS Compliant | Yes |
| Series | CSN |
| Supply Current | 12mA |
| RoHS | Compliant |
Download the complete datasheet for Honeywell CSNE151-204 to view detailed technical specifications.
