Honeywell
DUXL10D
Peizoresistive Sensor, Differential, 0Psi Min, 0.36Psi Max, 0-30mV, Rectangular, Through Hole Mount, MINIATURE-4
PackageSIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Honeywell DUXL10D technical specifications.
General
Accuracy
0.5%
Package/Case
SIP
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Pressure
5.42PSI
Max Supply Voltage (DC)
8V
Max Supply Voltage
8V
Min Supply Voltage
3V
Mount
Through Hole
Operating Pressure
0.36PSI
Operating Supply Voltage
4.5V
Output
ANALOG
Output Type
Wheatstone Bridge, Analog
Output Voltage
30mV
Package Quantity
5
Packaging
Rail/Tube
Port Style
Barbed
Pressure Type
Differential
Primary Type
PRESSURE SENSOR
RoHS Compliant
Yes
Series
DUXL
Termination
PC Pin
Compliance
RoHS
Compliant
Datasheet
Honeywell DUXL10D Datasheet
Download the complete datasheet for Honeywell DUXL10D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

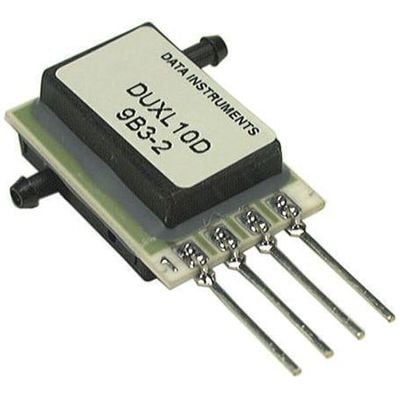

Product Images
