Honeywell
EX-AR

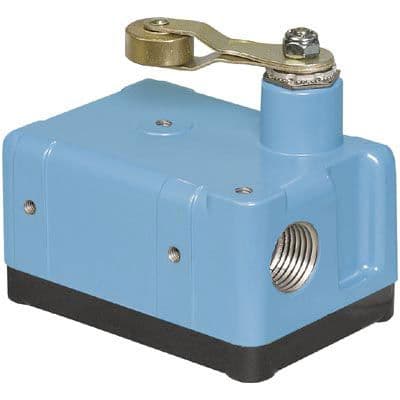

Switch Limit N.O./N.C. SPDT Side Rotary with Roller Lever Conduit 0.5A 250VDC 5.56N Rotary Screw Mount Automotive
Current Rating15A
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Honeywell EX-AR technical specifications.
General
Actuator Type
Rotary
Approvals
UL, CSA
Current Rating
15A
Max Current Rating
15A
Max Operating Temperature
71°C
Min Operating Temperature
-40°C
Max Voltage Rating (DC)
250V
Mount
Chassis Mount, Screw
Number of Poles
1
Number of Positions
2
Operating Force
556N
Orientation
Right Angle
Packaging
Bulk
Pretravel
556mm
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
EX
Switch Function
On-Mom
Termination
Conduit
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Compliance
RoHS
Compliant
Datasheet
Honeywell EX-AR Datasheet
Download the complete datasheet for Honeywell EX-AR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
