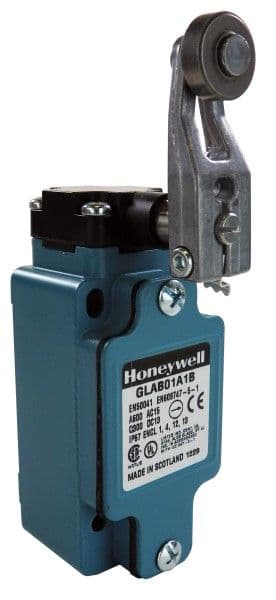

SPDT snap-action switch with a momentary function, featuring a side rotary roller lever actuator and screw terminals. Rated for 10A current and 600VAC/250VDC maximum voltage, with a 120VAC and 125VDC operational rating. This chassis-mount switch offers a mechanical life of 15,000,000 cycles, operates between -25°C and 85°C, and boasts IP67, waterproof, and dust-tight ratings. Dimensions include a length of 145.8mm, width of 42mm, and depth of 42mm.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Honeywell GLAB01A1B datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Honeywell GLAB01A1B technical specifications.
| Actuator Type | Rotary |
| Contact Type | Snap Action |
| Current Rating | 10A |
| Depth | 42mm |
| Length | 145.8mm |
| Max Current Rating | 6A |
| Max Operating Temperature | 85°C |
| Mechanical Life | 15000000Cycles |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 600V |
| Max Voltage Rating (DC) | 250V |
| Mount | Chassis Mount, Screw |
| Orientation | Right Angle |
| Packaging | Bulk |
| Ratings | IP67, Waterproof, Dust Tight |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | GLS |
| Switch Function | On-Mom |
| Termination | Screw |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 120V |
| DC Rated Voltage | 125V |
| Width | 42mm |
| RoHS | Compliant |
